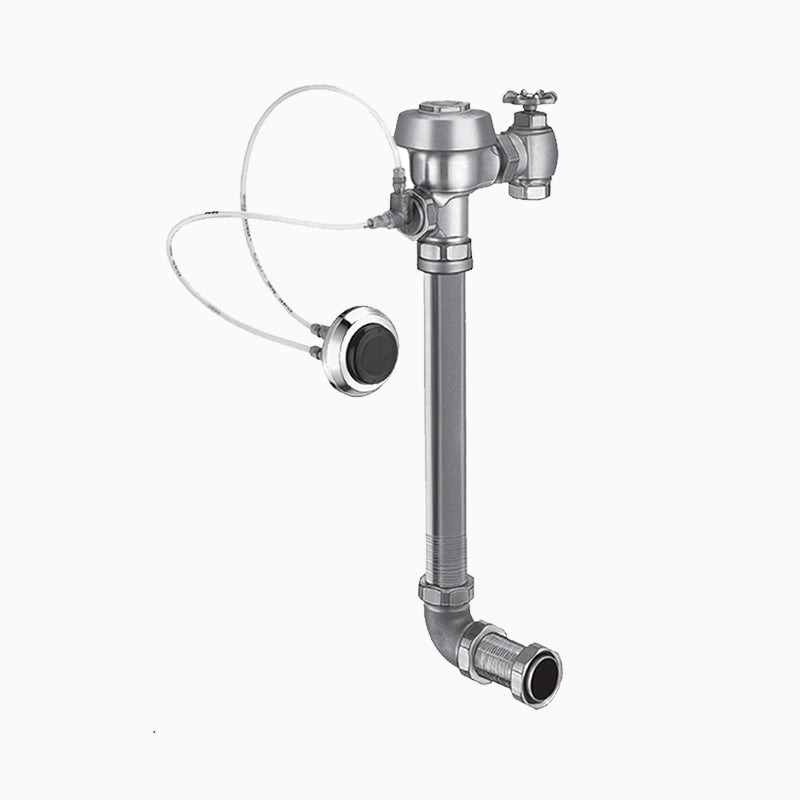

Sloan Royal 952 Concealed Manual Flushometer, Acorn RM50667 V500AA 6"

The Sloan Royal 952 is a manual diaphragm-type flush valve for a water closet. It features a permex synthetic rubber diaphragm seat.

Concealed manual flushometer with remotely positioned push-button actuators. ADA compliant, vandal-resistant, ASSE 1037 rated.

Options on this configuration: ACORN; RM50667; V500AA; 6". Sloan's own price-list description: ROYAL 952 ACORN RM50667 V500AA 6".

Features

• Various types of push-button flush actuators, which can be remotely positioned
• Flush volumes start as low as 1.6 gpf/6.0 Lpf
• Water conservation is aided by the ADA-compliant, non-hold-open
• Vandal-resistant stop cap to facilitate security
• Made from rough brass
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet.

Is this exposed or concealed, and does it need a wall box?

Concealed -- the body sits behind the wall, with only the cover or trim visible.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

Specifications

• Type: Flushometer
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Manual
• MPN: Royal 952
• Certifications: ASSE-1037
• Fixture Served: Water Closet
• Body Style: Concealed
• Vandal Resistant: Yes
