Description

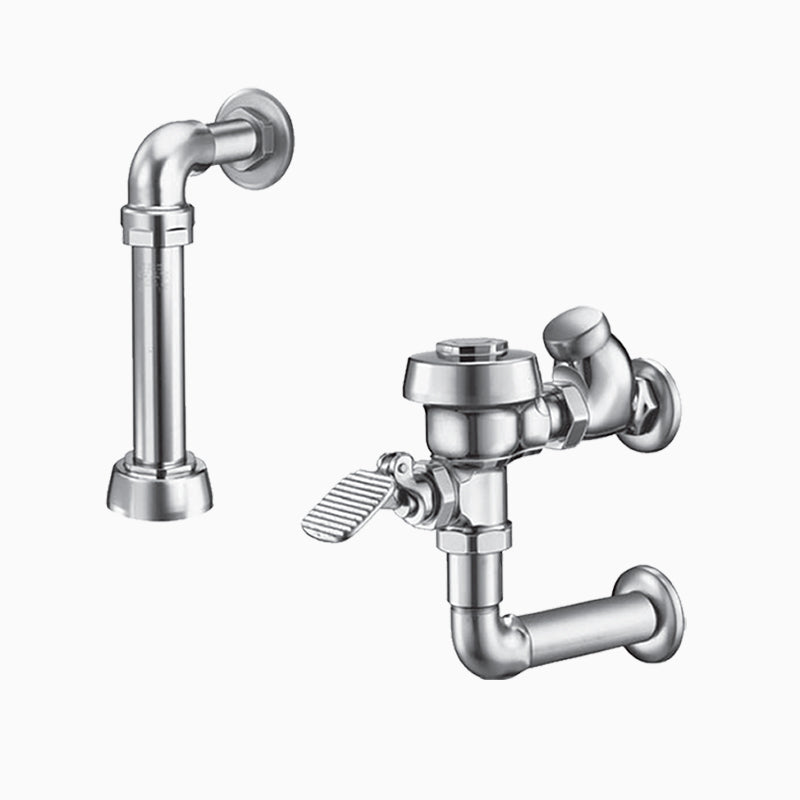

The Sloan Royal 310 is a manual diaphragm-type flush valve for a service sink. It features a permex synthetic rubber diaphragm seat.
Sloan ROYAL 310 foot pedal flushometer with CID technology for flush accuracy and dezincification-resistant brass construction.
Options on this configuration: Less Vacuum Breaker (order separately) (XYV); Less Flush Connection (L/FC); &; PEDAL; ASM. Sloan's own price-list description: ROYAL 310 XYV L/FC & PEDAL ASM.
Features
- Varying flush volumes start as low as 1.28 gpf/4.8 Lpf
- Water conservation is aided by non-hold-open foot pedal (not ADA compliant)
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a service sink.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
Specifications
- Type: Flushometer
- Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
- Operation: Manual
- MPN: Royal 310
- Certifications: ASSE-1037
- Fixture Served: Service Sink
- Body Style: Exposed
- Backflow Device: None (Order Separately)
Details
| Series | ROYAL 310 | Device Type | Flushometer |
| Seat Material | PERMEX Synthetic Rubber Diaphragm | Operation | Manual |
| Options | Less Vacuum Breaker (order separately) (XYV), Less Flush Connection (L/FC), &, PEDAL, ASM | Fixture Served | Service Sink |
| Backflow device | None (Order Separately) | Body style | Exposed |
Certifications & Standards
| ASSE-1037 | — |
Compare with similar products
| Fixture Served | Service Sink
| Water Closet
|
| Series | ROYAL 310
| SLOAN 112
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Flushometer
| Flushometer
|
| Seat Material | PERMEX Synthetic Rubber Diaphragm
| High-Chloramine-Resistant PERMEX Diaphragm
|
| Operation | Manual
| Manual
|
| Certifications | ASSE-1037
| ADA, Buy American Act, IAPMO, ASSE-1037
|
| Options | Less Vacuum Breaker (order separately) (XYV), Less Flush Connection (L/FC), &, PEDAL, ASM
| No Control Stop (XD)
|
