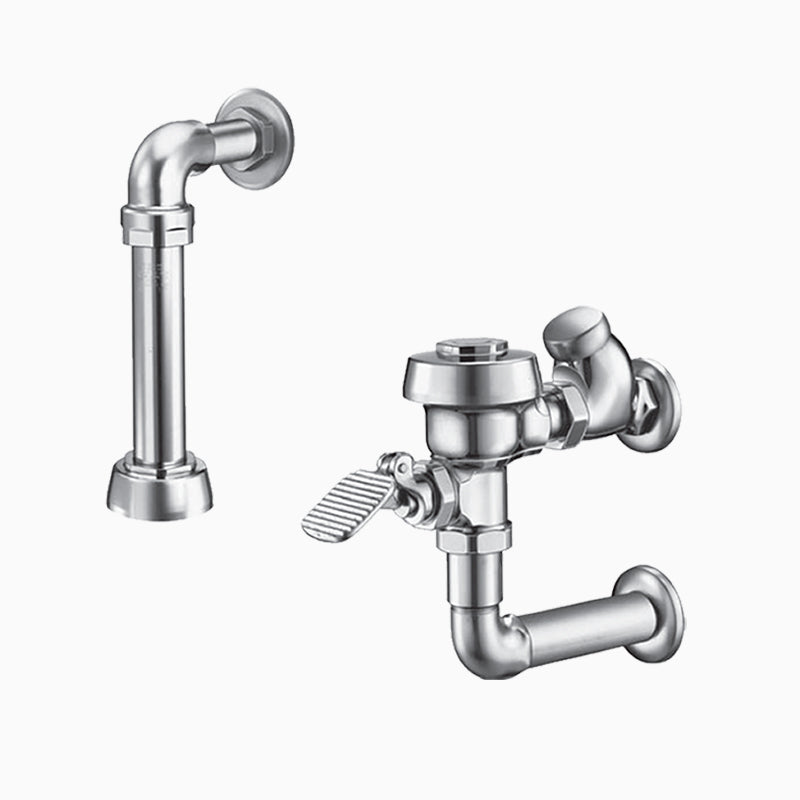

Sloan Royal 310 Exposed Manual Flushometer, 3 in. Wall

The Sloan Royal 310 is a manual diaphragm-type flush valve for a service sink. It features a permex synthetic rubber diaphragm seat.

Sloan ROYAL 310 foot pedal flushometer with CID technology for flush accuracy and dezincification-resistant brass construction.

Options on this configuration: 3; IN; WALL. Sloan's own price-list description: ROYAL 310 F303AT 3 IN WALL.

Features

• Varying flush volumes start as low as 1.28 gpf/4.8 Lpf
• Water conservation is aided by non-hold-open foot pedal (not ADA compliant)
• Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
• Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a service sink.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

Specifications

• Type: Flushometer
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Manual
• MPN: Royal 310
• Certifications: ASSE-1037
• Fixture Served: Service Sink
• Body Style: Exposed
