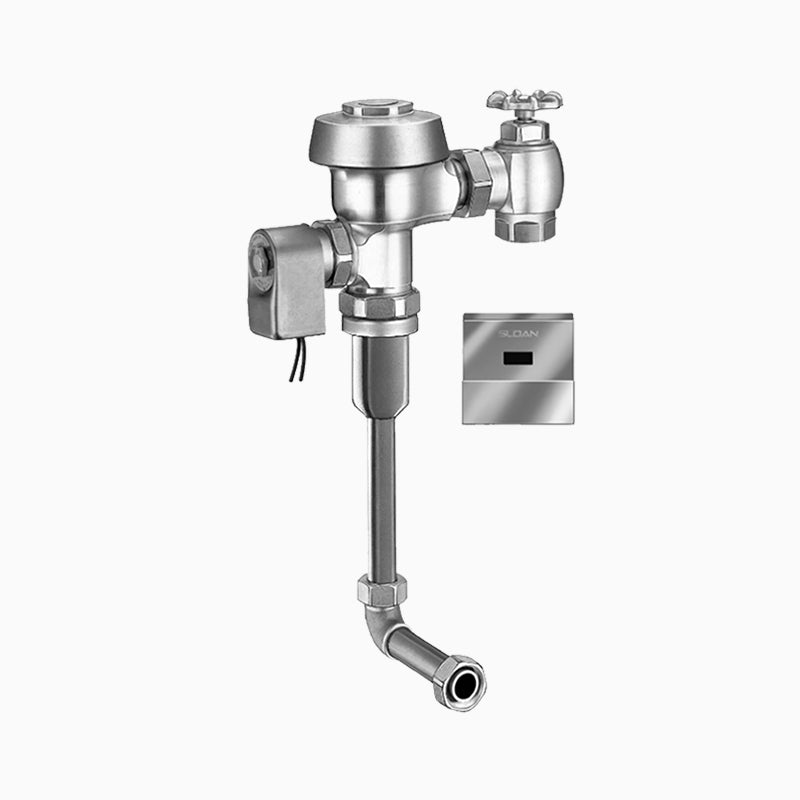

Sloan Royal 195 ESS Concealed Hardwired Sensor Urinal Flushometer

The Sloan Royal 195 is a sensor-operated diaphragm-type flush valve for a urinal. It features a permex synthetic rubber diaphragm seat.

Flush volumes starting at one pint. Royal 195 ESS flushometer conserves water with CID technology and ADA-compliant handle. Durable brass construction.

Options on this configuration: 4-3/4" L Dimension (LDIM); H5; 1; 3/4. Sloan model number: Royal 195. Sloan's own price-list description: ROYAL 195 4 3/4 LDIM ESS H5 1 3/4.

Features

• Flush volumes start as low as a pint of water
• Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents urinal from exceeding intended flush volume
• Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
• Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
• Adjustable tailpiece
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a urinal.

Is this exposed or concealed, and does it need a wall box?

Concealed -- the body sits behind the wall, with only the cover or trim visible.

How is it powered, and what happens in a power outage?

Hardwired -- no battery to replace, but an electrician must run power to it.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

Specifications

• Type: Flushometer
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Sensor
• MPN: Royal 195
• Certifications: ASSE-1037
• Fixture Served: Urinal
• Body Style: Concealed
• L Dimension (in): 4-3/4"
• Power Source: Hardwired AC
