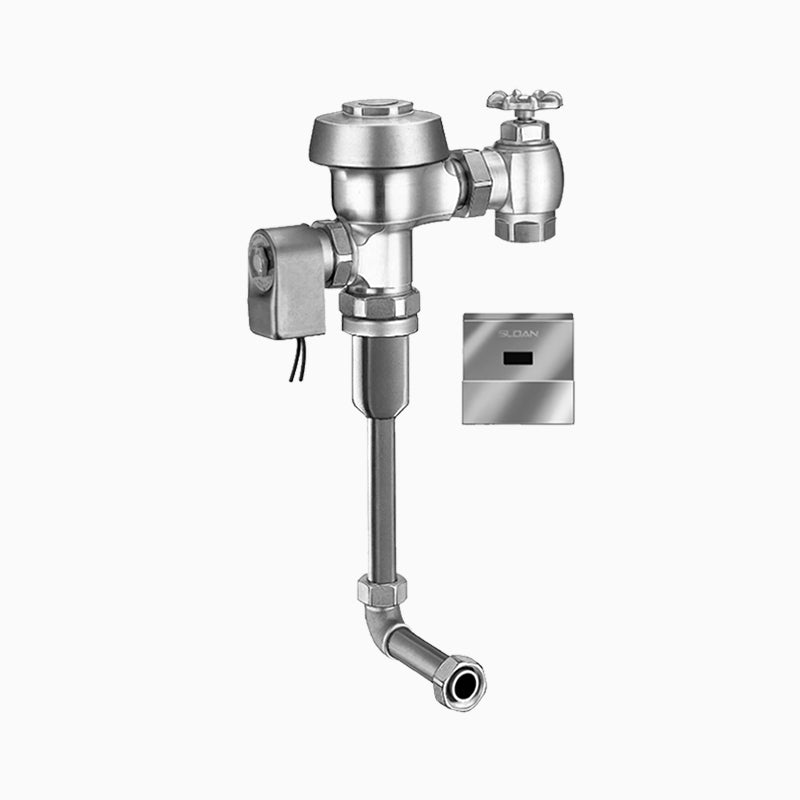

The Sloan ROYAL 195 ESS-1.5-RB-L/OR-HW-24V is a sensor-operated diaphragm-type flush valve for a urinal. It delivers 1.5 gallons per flush, with a rear spud connection at a concealed body. It features a semi-red brass body and a permex synthetic rubber diaphragm seat.
Flush volumes starting at one pint. Royal 195 ESS flushometer conserves water with CID technology and ADA-compliant handle. Durable brass construction.
Options on this configuration: 2"-22-3/4" L Dimension (LDIM); 24V Power (24V); Hardwired (HW); Less Override (L/OR). Sloan model number: ROYAL 195 ESS-1.5-RB-L/OR-HW-24V.
Features
- 1.5 gpf, Rough Brass Finish, Fixture Connection Rear Spud, Single Flush, 2"-22.75" L Dimension, Less Override, Hardwired, Sensor-Operated, 24V
- Flush volumes start as low as a pint of water
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents urinal from exceeding intended flush volume
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a urinal, 1.5 gallons per flush, a rear spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible.
- How is it powered, and what happens in a power outage?
- Hardwired -- no battery to replace, but an electrician must run power to it. It ships without a mechanical override -- it will not flush by hand if power is lost.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA and ASSE-1037.
Specifications
-
Type: Flushometer
-
Inlet Size: 3/4"
-
Outlet Size: 3/4"
-
Body Material: Semi-Red Brass
-
Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
-
Operation: Sensor
-
MPN: ROYAL 195 ESS-1.5-RB-L/OR-HW-24V
-
Certifications: ADA, Buy American Act, IAPMO, UL, ASSE-1037
-
Fixture Served: Urinal
-
Body Style: Concealed
-
Spud Connection: Rear Spud
-
Rough-In (in): 13.5"
-
L Dimension (in): 2"-22-3/4"
-
Volume per Flush (gal): 1.5
-
Dual Flush: No
-
Finish: Unfinished (Rough Brass)
-
Min Operating Pressure (PSI): 15
-
Max Operating Pressure (PSI): 80
-
Power Source: Hardwired AC
-
Power Supply Detail: 24V
-
Override Type: Less Override
-
Sensing Range (in): 15"-30"
