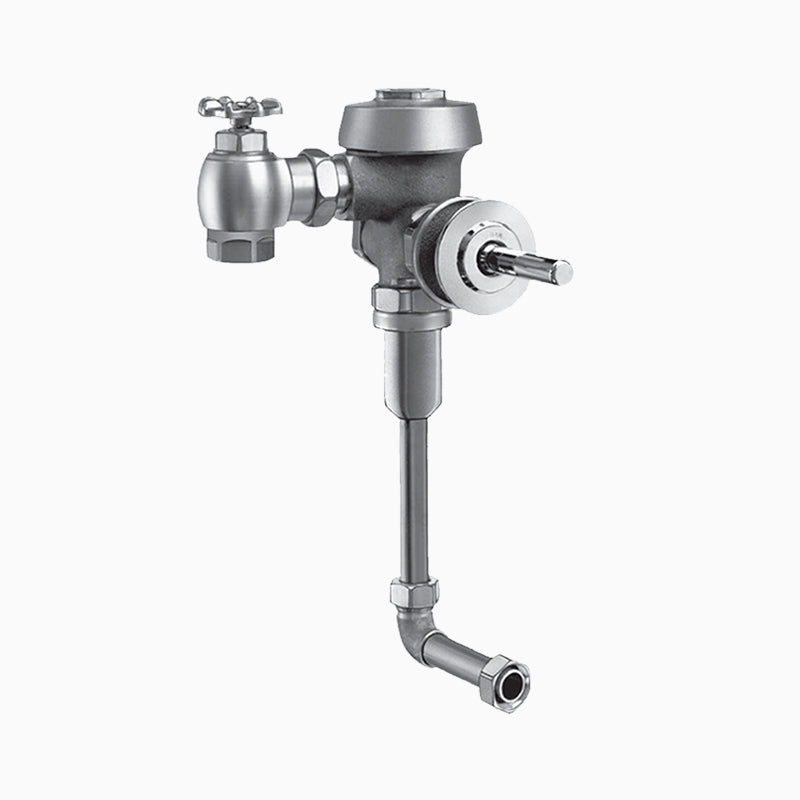

Sloan Royal 195-0.125 Concealed Manual Flushometer, 0.125 gpf

The Sloan Royal 195-0.125 is a manual diaphragm-type flush valve for a urinal. It delivers 0.125 gallons per flush, with a concealed body. It features a permex synthetic rubber diaphragm seat.

Sloan ROYAL 195 concealed manual urinal flushometer with CID technology and flush volumes as low as a pint. ADA compliant.

Options on this configuration: Less Flush Connection (L/FC); W/H750AG; &; B12A. Sloan model number: Royal 195-0.125. Sloan's own price-list description: ROYAL 195-0.125 W/H750AG L/FC & B12A.

Features

• Flush volumes start as low as a pint of water
• Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents urinal from exceeding intended flush volume
• Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
• Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
• Adjustable tailpiece
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a urinal, 0.125 gallons per flush.

Is this exposed or concealed, and does it need a wall box?

Concealed -- the body sits behind the wall, with only the cover or trim visible.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

Specifications

• Type: Flushometer
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Manual
• MPN: Royal 195-0.125
• Certifications: ASSE-1037
• Fixture Served: Urinal
• Body Style: Concealed
• Volume per Flush (gal): 0.125
