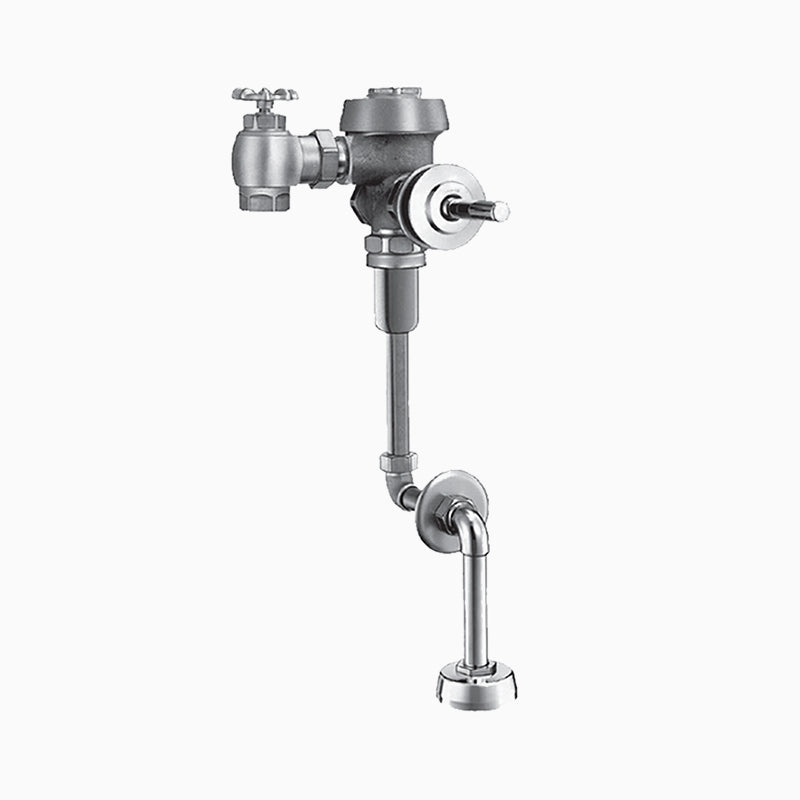

Sloan Royal 197 Concealed Manual Flushometer

The Sloan Royal 197 is a manual diaphragm-type flush valve for a urinal. It features a permex synthetic rubber diaphragm seat.

Sloan ROYAL 197 concealed manual urinal flushometer with flush volumes as low as a pint. ADA-compliant handle, dezincification-resistant brass.

Options on this configuration: 6-3/4" L Dimension (LDIM); No Control Stop (XD); Less Vacuum Breaker (order separately) (XYV); MOD. Sloan's own price-list description: ROYAL 197 6 3/4 LDIM MOD XD XYV.

Features

• Flush volumes start as low as a pint of water
• Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents urinal from exceeding intended flush volume
• Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
• Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
• Adjustable tailpiece
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a urinal.

Is this exposed or concealed, and does it need a wall box?

Concealed -- the body sits behind the wall, with only the cover or trim visible.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

What control stop ships with this valve?

None Included, per Sloan's own spec for this model.

Specifications

• Type: Flushometer
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Manual
• Control Stop: None Included
• MPN: Royal 197
• Certifications: ASSE-1037
• Fixture Served: Urinal
• Body Style: Concealed
• L Dimension (in): 6-3/4"
• Backflow Device: None (Order Separately)
