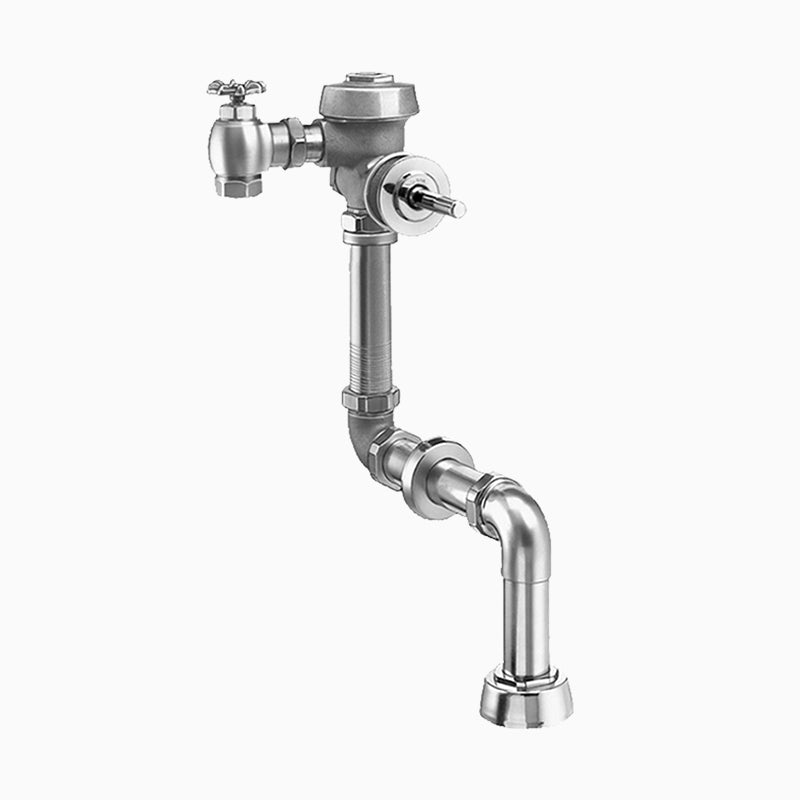

Sloan Royal 192 Concealed Manual Flushometer

The Sloan Royal 192 is a manual diaphragm-type flush valve for a urinal. It features a permex synthetic rubber diaphragm seat.

Sloan ROYAL 192 concealed manual urinal flushometer flushes as low as a pint. CID technology, ADA handle, and dezincification-resistant brass.

Options on this configuration: 10-3/4" L Dimension (LDIM); 1" Straight Control Stop (E); VB; 6"; F102. Sloan's own price-list description: ROYAL 192 10 3/4 LDIM E VB 6" F102.

Features

• Flush volumes start as low as a pint of water
• Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents urinal from exceeding intended flush volume
• Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
• Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
• Adjustable tailpiece
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a urinal.

Is this exposed or concealed, and does it need a wall box?

Concealed -- the body sits behind the wall, with only the cover or trim visible.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

What control stop ships with this valve?

1" Straight, per Sloan's own spec for this model.

Specifications

• Type: Flushometer
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Manual
• Control Stop: 1" Straight
• MPN: Royal 192
• Certifications: ASSE-1037
• Fixture Served: Urinal
• Body Style: Concealed
• L Dimension (in): 10-3/4"
