Similar products
Specifications
Description

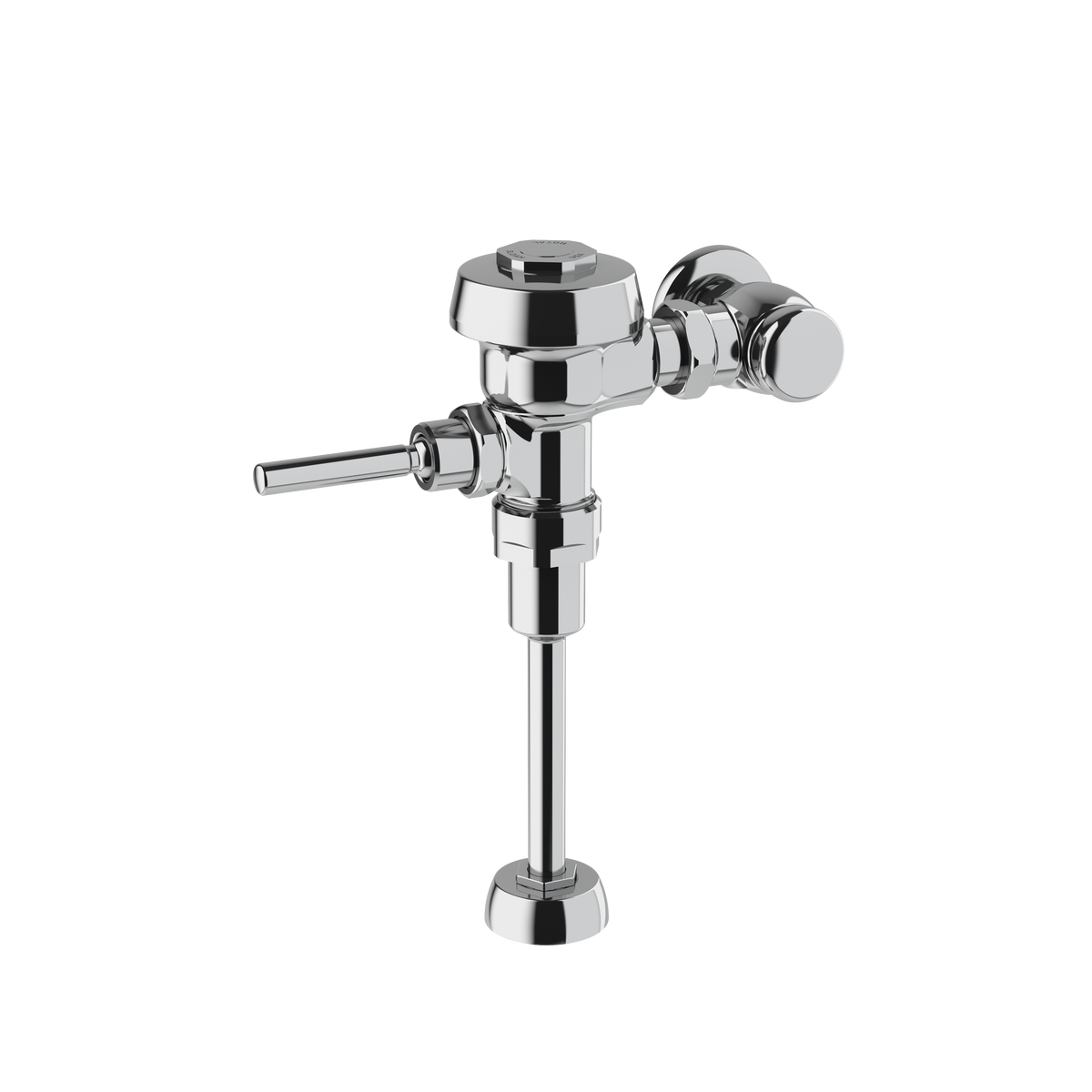

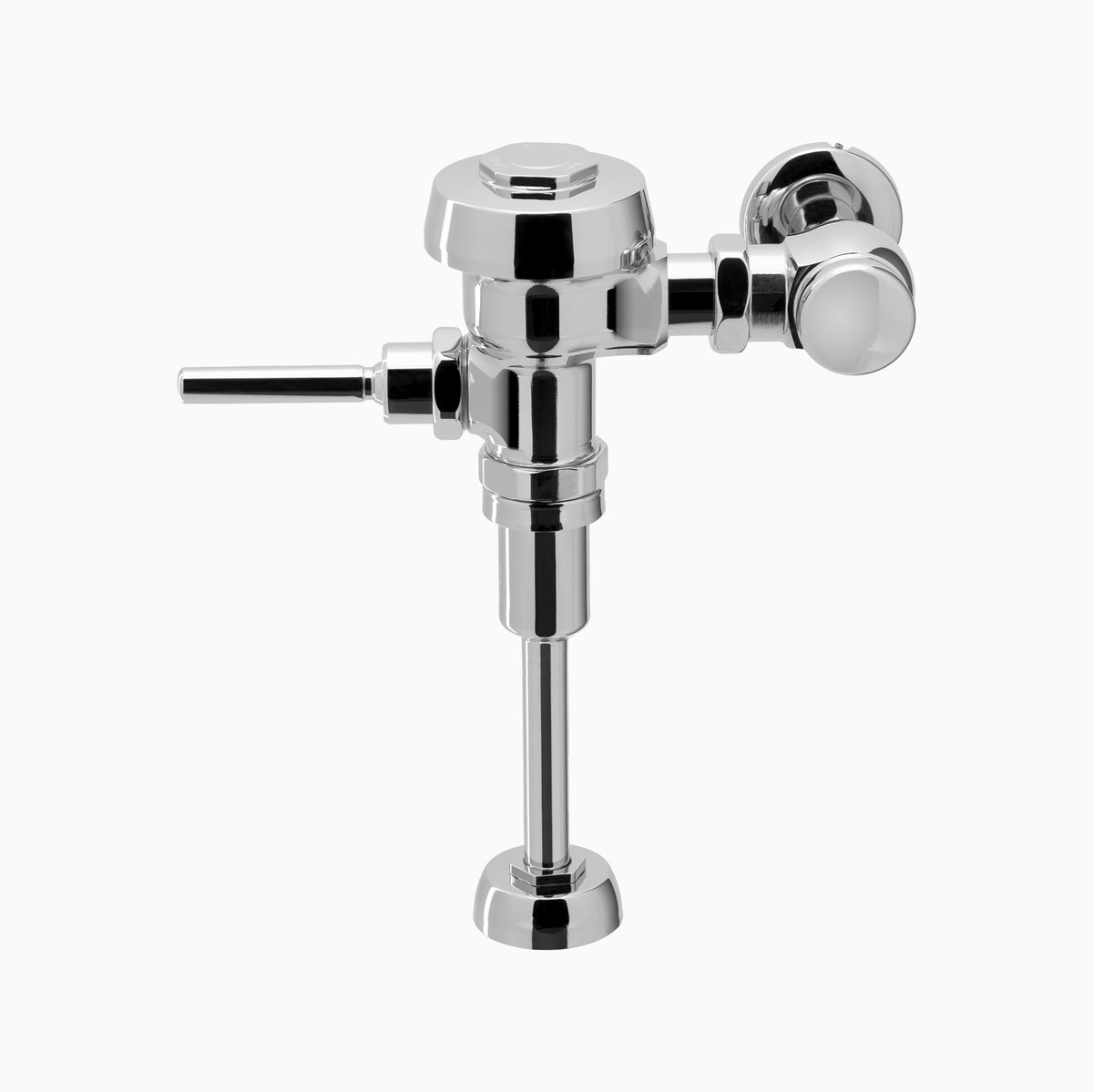

The Sloan Royal 186-0.5 is a manual diaphragm-type flush valve for a urinal. It delivers 0.5 gallons per flush, with an exposed body. It features a permex synthetic rubber diaphragm seat.
Sloan Royal 186 ADA-compliant exposed manual urinal flushometer with CID technology for precise flush control. Dezincification-resistant brass castings.
Options on this configuration: Metal Index Handle (L); Front of Valve Handle (H); Wheel Handle Control Stop (K); C; 2954; 481; 000. Sloan model number: Royal 186-0.5. Sloan's own price-list description: ROYAL 186-0.5 C H K L (2954-481-000).
Features
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents urinal from exceeding intended flush volume
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Integrity of the product is maintained with the vandal-resistant stop cap
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a urinal, 0.5 gallons per flush.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- What kind of handle does this have?
- A Metal Index handle, per Sloan's own spec for this model.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
- What control stop ships with this valve?
- Wheel Handle, per Sloan's own spec for this model.
Specifications
- Type: Flushometer
- Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
- Operation: Manual
- Control Stop: Wheel Handle
- MPN: Royal 186-0.5
- Certifications: ASSE-1037
- Fixture Served: Urinal
- Body Style: Exposed
- Volume per Flush (gal): 0.5
- Handle Style: Metal Index
- Vandal Resistant: Yes
Details
| Series | ROYAL 186 | Device Type | Flushometer |
| Seat Material | PERMEX Synthetic Rubber Diaphragm | Operation | Manual |
| Options | Metal Index Handle (L), Front of Valve Handle (H), Wheel Handle Control Stop (K), C, 2954, 481, 000 | Shutoff | Wheel Handle |
| Fixture Served | Urinal | Body style | Exposed |
| Cycle volume gal | 0.5 gal | Handle style | Metal Index |
| Vandal resistant | Yes | — | — |
Certifications & Standards
| ASSE-1037 | — |
Compare with similar products
| Shutoff | Wheel Handle
| None Included
|
| Fixture Served | Urinal
| Water Closet
|
| Series | ROYAL 186
| SLOAN 112
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Flushometer
| Flushometer
|
| Seat Material | PERMEX Synthetic Rubber Diaphragm
| High-Chloramine-Resistant PERMEX Diaphragm
|
| Operation | Manual
| Manual
|
| Certifications | ASSE-1037
| ADA, Buy American Act, IAPMO, ASSE-1037
|
| Options | Metal Index Handle (L), Front of Valve Handle (H), Wheel Handle Control Stop (K), C, 2954, 481, 000
| No Control Stop (XD)
|
