Description

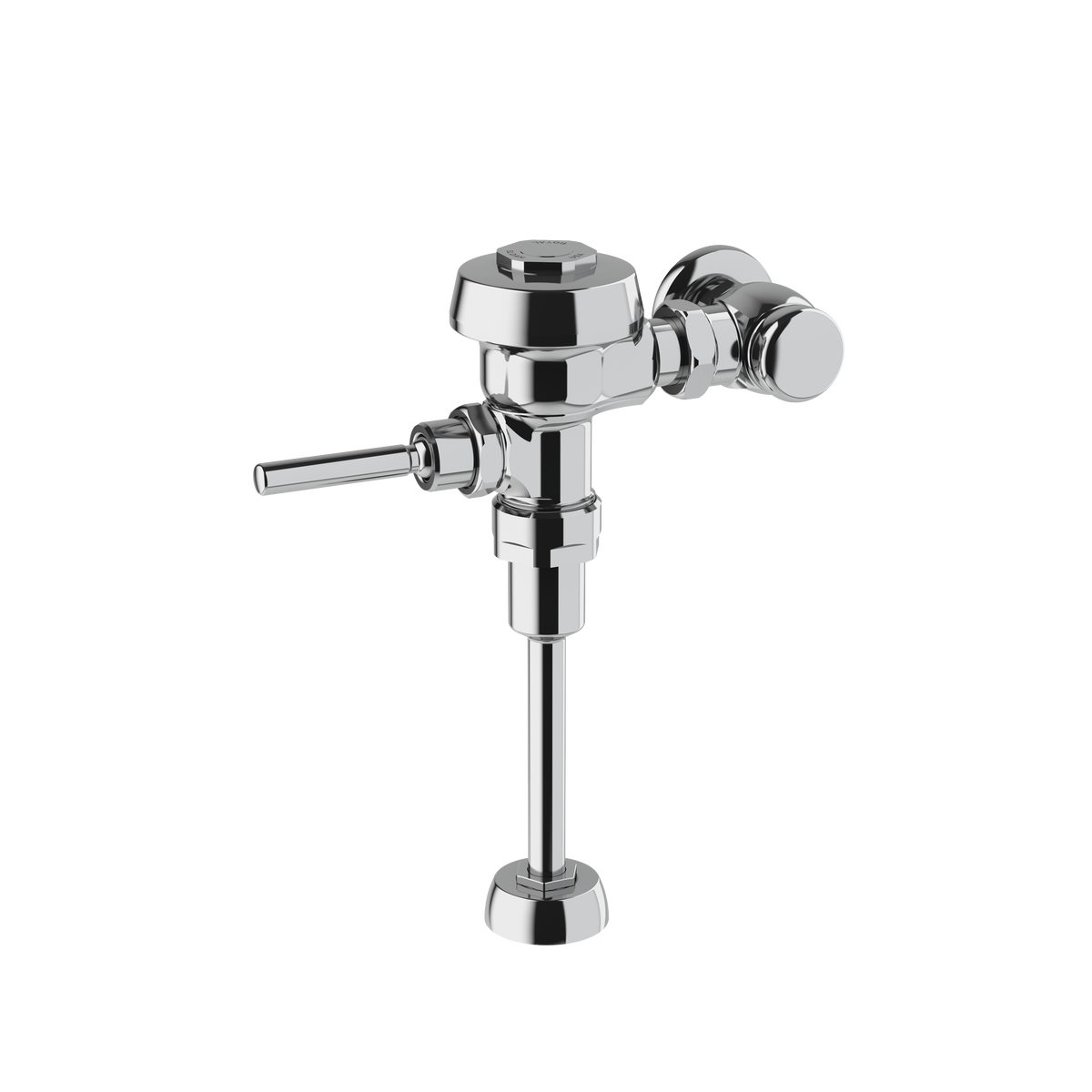

The Sloan Royal 186-1 is a manual diaphragm-type flush valve for a urinal. It delivers 1.0 gallons per flush, with an exposed body. It features a permex synthetic rubber diaphragm seat.
Sloan Royal 186 ADA-compliant exposed manual urinal flushometer with CID technology for precise flush control. Dezincification-resistant brass castings.
Options on this configuration: Cast Set Screw Wall Flange and Casing Tube (YBYC). Sloan model number: Royal 186-1.
Features
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents urinal from exceeding intended flush volume
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Integrity of the product is maintained with the vandal-resistant stop cap
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a urinal, 1.0 gallons per flush.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
Specifications
- Type: Flushometer
- Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
- Operation: Manual
- MPN: Royal 186-1
- Certifications: ASSE-1037
- Fixture Served: Urinal
- Body Style: Exposed
- Volume per Flush (gal): 1.0
- Vandal Resistant: Yes
Details
| Series | ROYAL 186 | Device Type | Flushometer |
| Seat Material | PERMEX Synthetic Rubber Diaphragm | Operation | Manual |
| Options | Cast Set Screw Wall Flange and Casing Tube (YBYC) | Fixture Served | Urinal |
| Body style | Exposed | Cycle volume gal | 1.0 gal |
| Vandal resistant | Yes | — | — |
Certifications & Standards
| ASSE-1037 | — |
