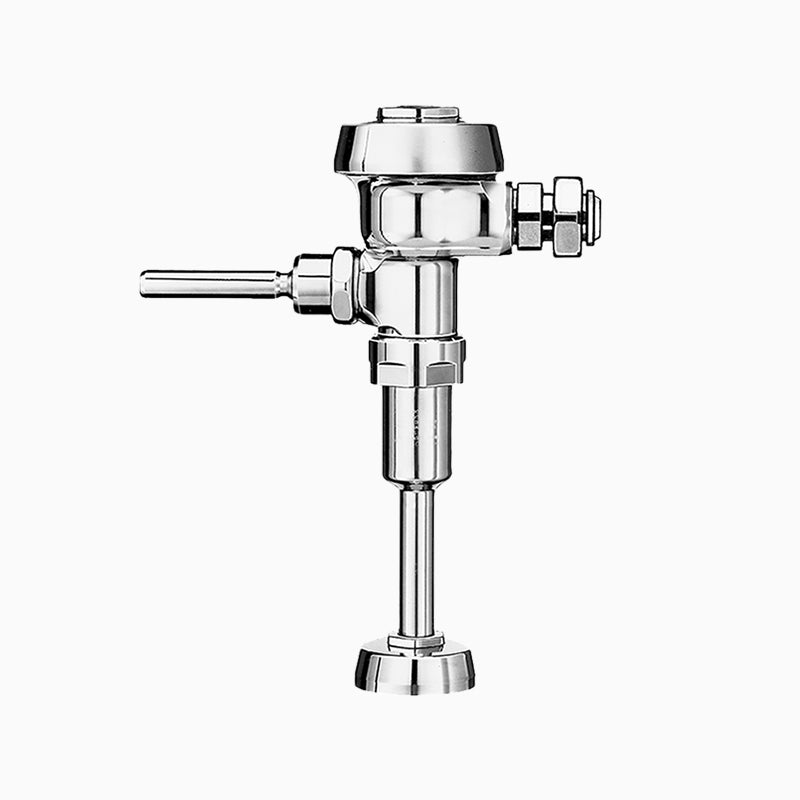

Sloan Royal 188-1.0 Exposed Manual Flushometer, 1.0 gpf, Top Spud, Polished Chrome, No Control Stop, Less Vacuum Breaker, Less Flush Connection, less Flush Conn

The Sloan ROYAL 188-1.0-XD-CP-L/FC is a manual diaphragm-type flush valve for a urinal. It delivers 1.0 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body and a permex synthetic rubber diaphragm seat.

Replaces Cambridge Brass Teck Valves without changing the control stop. CID technology, ADA-compliant handle.

Options on this configuration: No Control Stop (XD); Less Vacuum Breaker (order separately) (XYV); Less Flush Connection (L/FC); L/FLUSH; CONN. Sloan model number: ROYAL 188-1.0-XD-CP-L/FC. Sloan's own price-list description: ROYAL 188-1 XD XYV L/ FLUSH CONN.

Features

• 1.0 gpf, Polished Chrome Finish, Less Flush Connection, Fixture Connection Top Spud, Single Flush, No Control Stop
• The Flushometer replaces existing Cambridge Brass Teck Valves without having to replace the supply control stop.
• Various water-saving flush volumes for urinals and water closets
• Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents fixture from exceeding intended flush volume
• Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
• Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
• Vandal-resistant stop cap prevents tampering
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a urinal, 1.0 gallons per flush, a top spud connection.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ADA and ASSE-1037.

What control stop ships with this valve?

None Included, per Sloan's own spec for this model.

Specifications

• Type: Flushometer
• Inlet Size: 3/4"
• Outlet Size: 3/4"
• Body Material: Semi-Red Brass
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Manual
• Control Stop: None Included
• Country of Origin: USA
• MPN: ROYAL 188-1.0-XD-CP-L/FC
• Certifications: ADA, Buy American Act, IAPMO, ASSE-1037
• Fixture Served: Urinal
• Body Style: Exposed
• Spud Connection: Top Spud
• Rough-In (in): 13.5"
• Volume per Flush (gal): 1.0
• Dual Flush: No
• Finish: Polished Chrome
• Vandal Resistant: Yes
• Backflow Device: None (Order Separately)
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
