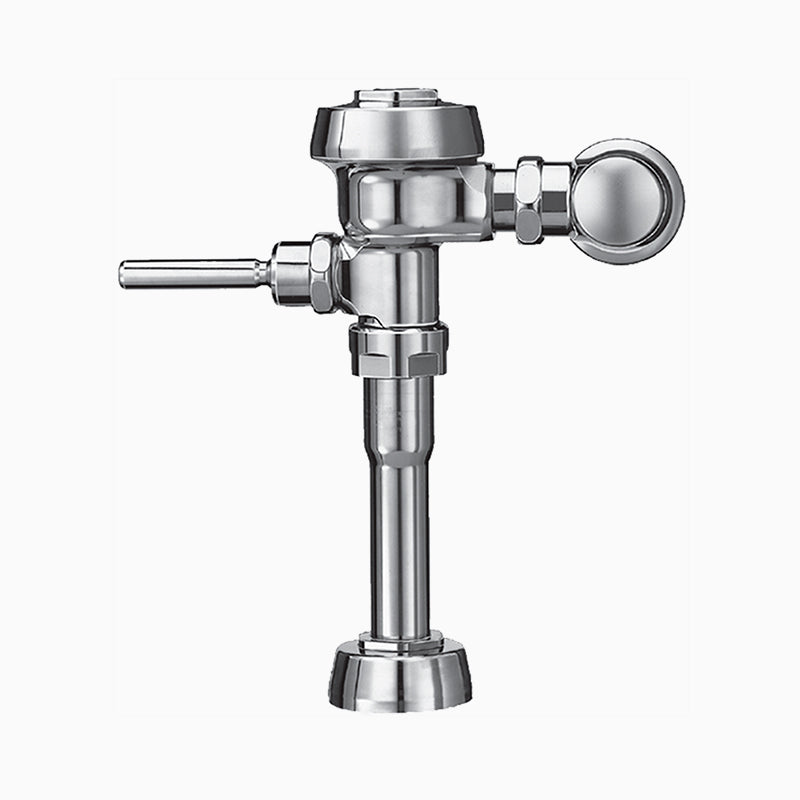

Sloan Royal 180-1.0 Exposed Manual Flushometer, 1.0 gpf, Cast Set Screw Wall Flange and Casing Tube

The Sloan Royal 180-1 is a manual diaphragm-type flush valve for a urinal. It delivers 1.0 gallons per flush, with an exposed body. It features a permex synthetic rubber diaphragm seat.

Sloan ROYAL 180 exposed manual urinal flushometer features semi-red brass construction, PERMEX synthetic diaphragm, and ASSE 1037 compliance.

Options on this configuration: Cast Set Screw Wall Flange and Casing Tube (YBYC). Sloan model number: Royal 180-1.

Features

• All organic rubber has been replaced with synthetic compounds
• Optional purple handle provides additional indication of reclaimed water use
• Critical components, including cover, valve body, control stop and sweat solder kit, are made of semi-red brass
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a urinal, 1.0 gallons per flush.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

Specifications

• Type: Flushometer
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Manual
• MPN: Royal 180-1
• Certifications: ASSE-1037
• Fixture Served: Urinal
• Body Style: Exposed
• Volume per Flush (gal): 1.0
