Description

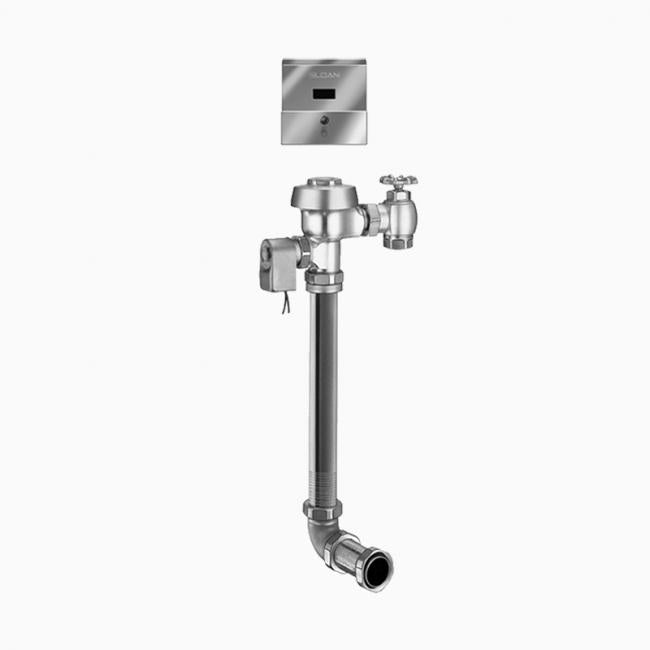

The Sloan Royal 152 is a sensor-operated diaphragm-type flush valve for a water closet. It features a permex synthetic rubber diaphragm seat.
Flush volumes from 1.28 gpf with CID technology for precise water efficiency. ADA-compliant handle prevents excess flushing. Vandal-resistant design for commercial durability.
Options on this configuration: 2"-10-3/4" L Dimension (LDIM); Wall Box Version (WB); W/EL191A. Sloan model number: Royal 152. Sloan's own price-list description: ROYAL 152 2-10 3/4 LDIM ESS WB W/EL191A.
Features
- Flush volumes start as low as 1.28 gpf/4.8 Lpf
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Integrity of the product is maintained with the vandal-resistant stop cap
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible.
- How is it powered, and what happens in a power outage?
- Hardwired -- no battery to replace, but an electrician must run power to it.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
Specifications
- Type: Flushometer
- Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
- Operation: Sensor
- MPN: Royal 152
- Certifications: ASSE-1037
- Fixture Served: Water Closet
- Body Style: Concealed
- L Dimension (in): 2"-10-3/4"
- Vandal Resistant: Yes
- Power Source: Hardwired AC
Details
| Series | ROYAL 152 ESS | Device Type | Flushometer |
| Seat Material | PERMEX Synthetic Rubber Diaphragm | Operation | Sensor |
| Options | 2"-10-3/4" L Dimension (LDIM), Wall Box Version (WB), W/EL191A | Fixture Served | Water Closet |
| Body style | Concealed | L dimension in | 2"-10-3/4" |
| Vandal resistant | Yes | Power source | Hardwired AC |
Certifications & Standards
| ASSE-1037 | — |
Compare with similar products
| Fixture Served | Water Closet
| Urinal
|
| Series | ROYAL 152 ESS
| SLOAN 8186
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Flushometer
| Flushometer
|
| Seat Material | PERMEX Synthetic Rubber Diaphragm
| High-Chloramine-Resistant PERMEX Diaphragm
|
| Operation | Sensor
| Sensor
|
| Certifications | ASSE-1037
| ADA, Buy American Act, BABA, IAPMO, WaterSense, ASSE-1037
|
