Specifications
Description

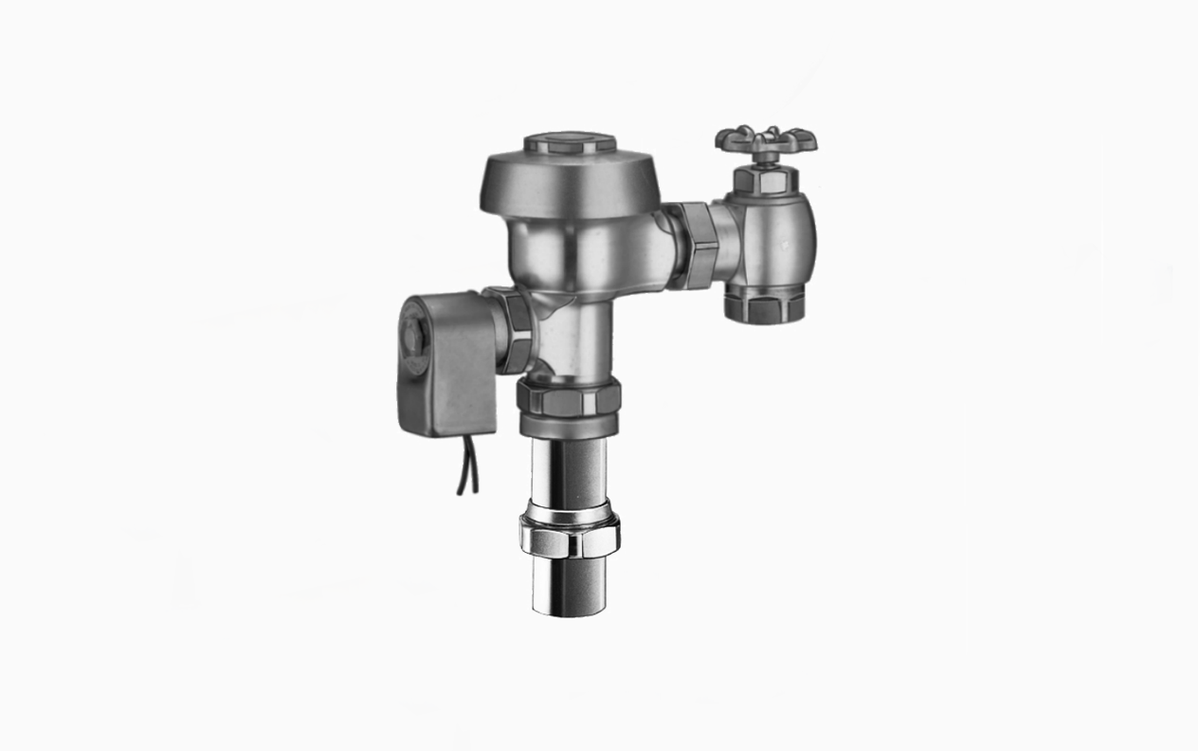

The Sloan Royal 150 is a solenoid-operated diaphragm-type flush valve for a water closet. It features a permex synthetic rubber diaphragm seat.
Options on this configuration: 24V Power (24V); RM50662. Sloan model number: Royal 150. Sloan's own price-list description: ROYAL 150 ES 24V RM50662.
Features
- Flush volumes start as low as 1.28 gpf/4.8 Lpf
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Integrity of the product is maintained with the vandal-resistant stop cap
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible.
- How is it powered, and what happens in a power outage?
- Hardwired -- no battery to replace, but an electrician must run power to it.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
Specifications
- Type: Flushometer
- Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
- Operation: Solenoid
- MPN: Royal 150
- Certifications: ASSE-1037
- Fixture Served: Water Closet
- Body Style: Concealed
- Vandal Resistant: Yes
- Power Source: Hardwired AC
- Power Supply Detail: 24V
Details
| Series | ROYAL 150 ES | Device Type | Flushometer |
| Seat Material | PERMEX Synthetic Rubber Diaphragm | Operation | Solenoid |
| Options | 24V Power (24V), RM50662 | Fixture Served | Water Closet |
| Body style | Concealed | Vandal resistant | Yes |
| Power source | Hardwired AC | Power supply detail | 24V |
Certifications & Standards
| ASSE-1037 | — |
