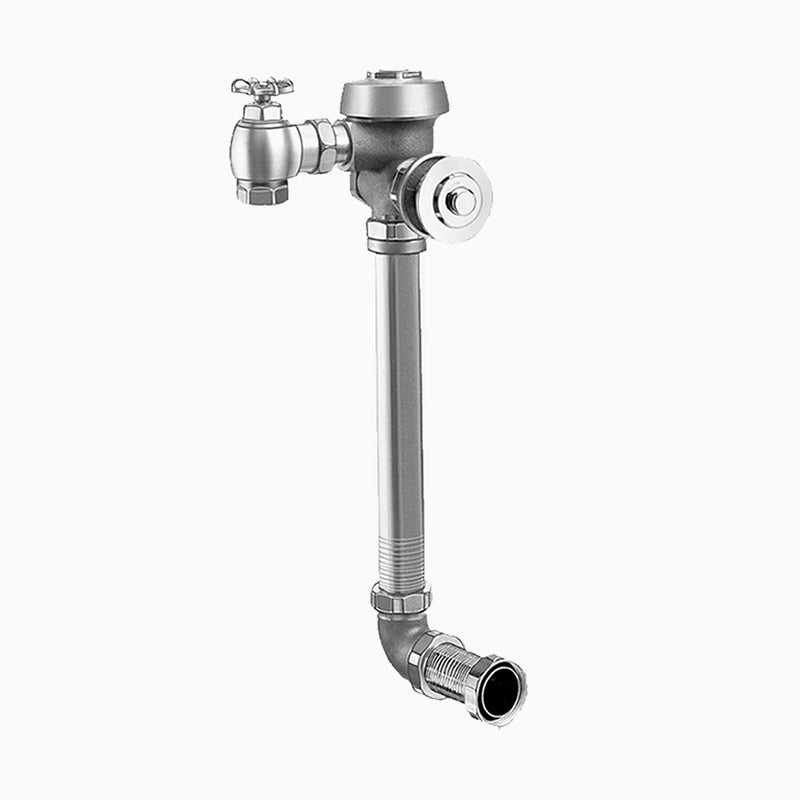

Sloan Royal 152 Concealed Manual Flushometer, 3-3/4" LDIM, 3" Metal Oscillating Handle, V500AA 3 3/4

Roll over image to zoom in

Sloan Royal 152 Concealed Manual Flushometer, 3-3/4" LDIM, 3" Metal Oscillating Handle, V500AA 3 3/4

Name: Sloan Royal 152 Concealed Manual Flushometer, 3-3/4" LDIM, 3" Metal Oscillating Handle, V500AA 3 3/4
Brand: Sloan
SKU: 3911672
Price: 313.94 USD
Availability: InStock

Save $148.71

SloanSKU: 3911672

Call an expert

713-224-1643

Chat Call

Questions? Call (713) 224-1643

The Sloan Royal 152 is a manual diaphragm-type flush valve for a water closet. It features a permex synthetic rubber diaphragm seat.

Concealed manual water closet flushometer flushing as low as 1.28 gpf with CID technology, ADA handle, and dezincification-resistant brass castings.

Options on this configuration: 3-3/4" L Dimension (LDIM); 3" Metal Oscillating Handle (L3); V500AA; 3; 3/4. Sloan's own price-list description: ROYAL 152 3 3/4 LDM L3 V500AA 3 3/4.

Features

Flush volumes start as low as 1.28 gpf/4.8 Lpf
Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
Integrity of the product is maintained with the vandal-resistant stop cap
Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
Adjustable tailpiece
Wall Box ready
PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?: Per Sloan's own spec, it serves a water closet.
Is this exposed or concealed, and does it need a wall box?: Concealed -- the body sits behind the wall, with only the cover or trim visible.
What kind of handle does this have?: A 3" Metal Oscillating handle, per Sloan's own spec for this model.
Is this ADA, WaterSense, or ASSE 1037 listed?: Yes -- Sloan lists it as ASSE-1037.

Specifications

Type: Flushometer
Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
Operation: Manual
MPN: Royal 152
Certifications: ASSE-1037
Fixture Served: Water Closet
Body Style: Concealed
L Dimension (in): 3-3/4"
Handle Style: 3" Metal Oscillating
Vandal Resistant: Yes
