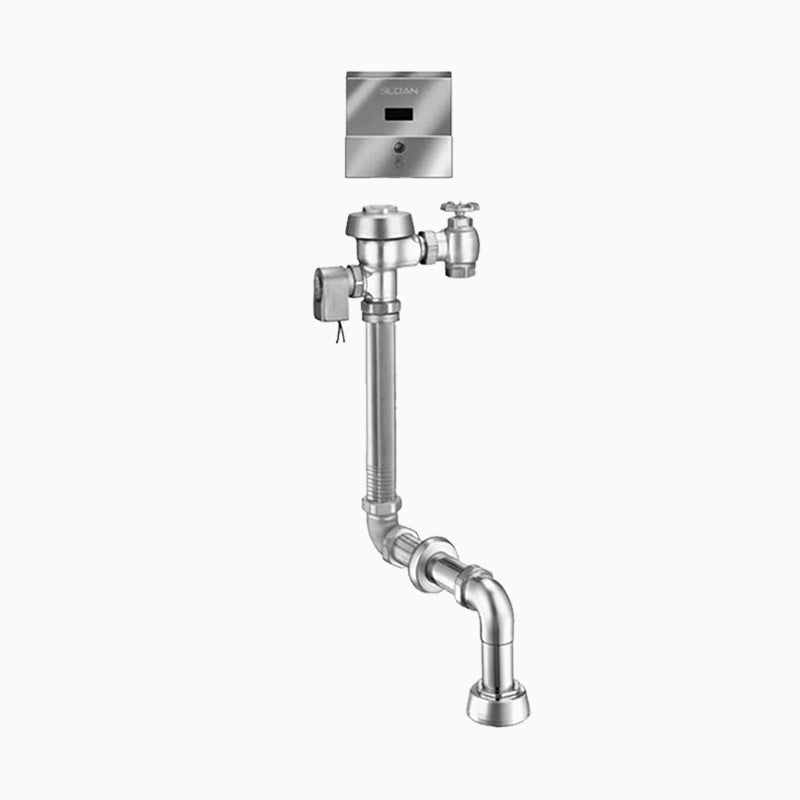

The Sloan Royal 153 is a sensor-operated diaphragm-type flush valve for a water closet. It features a permex synthetic rubber diaphragm seat.
Efficient flushometer with 1.28 gpf/4.8 Lpf flush volumes. ADA-compliant handle and CID technology enhance water savings. Durable brass construction.
Options on this configuration: 2"-10-3/4" L Dimension (LDIM); W/6; VB. Sloan model number: Royal 153. Sloan's own price-list description: ROYAL 153 2-10 3/4 LDIM ESS W/6 VB.
Features
- Flush volumes start as low as 1.28 gpf/4.8 Lpf
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Integrity of the product is maintained with the vandal-resistant stop cap
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible.
- How is it powered, and what happens in a power outage?
- Hardwired -- no battery to replace, but an electrician must run power to it.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
Specifications
-
Type: Flushometer
-
Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
-
Operation: Sensor
-
MPN: Royal 153
-
Certifications: ASSE-1037
-
Fixture Served: Water Closet
-
Body Style: Concealed
-
L Dimension (in): 2"-10-3/4"
-
Vandal Resistant: Yes
-
Power Source: Hardwired AC
