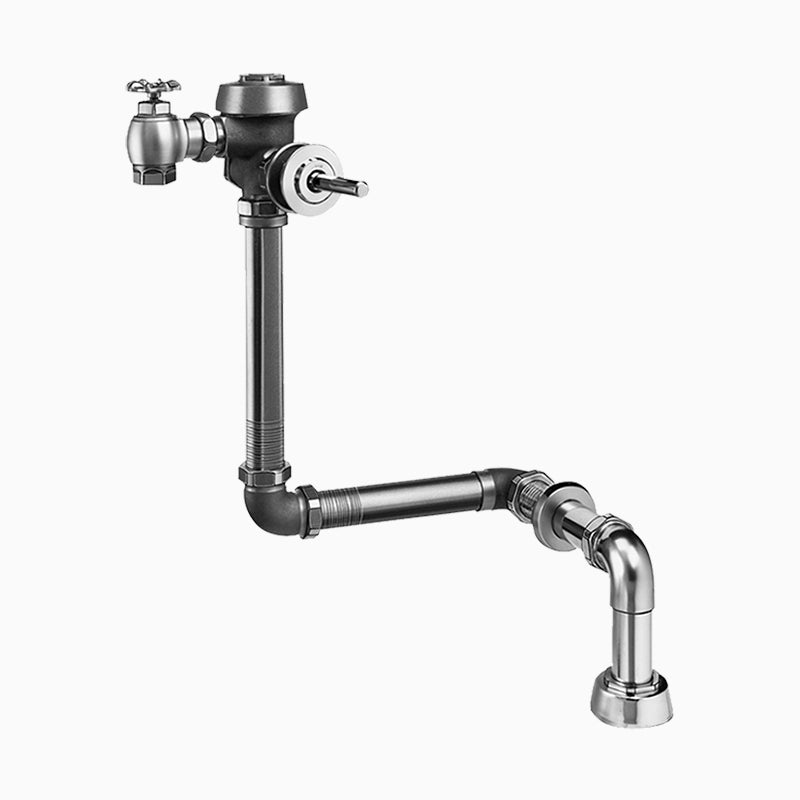

The Sloan Royal 142 is a manual diaphragm-type flush valve for a water closet. It features a permex synthetic rubber diaphragm seat.
Sloan ROYAL 142 concealed manual flushometer available in multiple flush volumesf with CID technology and ADA-compliant handle. ASSE 1037 compliant.
Options on this configuration: 6-3/4" L Dimension (LDIM); 1" Straight Control Stop (E); W/V500AA; 26-1/2. Sloan's own price-list description: ROYAL 142 6 3/4 LDIM E W/V500AA 26-1/2.
Features
- Flush volumes start as low as 1.28 gpf/4.8 Lpf
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Integrity of the product is maintained with the vandal-resistant stop cap
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
- What control stop ships with this valve?
- 1" Straight, per Sloan's own spec for this model.
Specifications
- Type: Flushometer
- Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
- Operation: Manual
- Control Stop: 1" Straight
- MPN: Royal 142
- Certifications: ASSE-1037
- Fixture Served: Water Closet
- Body Style: Concealed
- L Dimension (in): 6-3/4"
- Vandal Resistant: Yes
Details
| Series | ROYAL 142 | Device Type | Flushometer |
| Seat Material | PERMEX Synthetic Rubber Diaphragm | Operation | Manual |
| Options | 6-3/4" L Dimension (LDIM), 1" Straight Control Stop (E), W/V500AA, 26-1/2 | Shutoff | 1" Straight |
| Fixture Served | Water Closet | Body style | Concealed |
| L dimension in | 6-3/4" | Vandal resistant | Yes |
Certifications & Standards
| ASSE-1037 | — |
Compare with similar products
| Shutoff | 1" Straight
| None Included
|
| Fixture Served | Water Closet
| Water Closet
|
| Series | ROYAL 142
| SLOAN 112
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Flushometer
| Flushometer
|
| Seat Material | PERMEX Synthetic Rubber Diaphragm
| High-Chloramine-Resistant PERMEX Diaphragm
|
| Operation | Manual
| Manual
|
| Certifications | ASSE-1037
| ADA, Buy American Act, IAPMO, ASSE-1037
|
| Options | 6-3/4" L Dimension (LDIM), 1" Straight Control Stop (E), W/V500AA, 26-1/2
| No Control Stop (XD)
|
