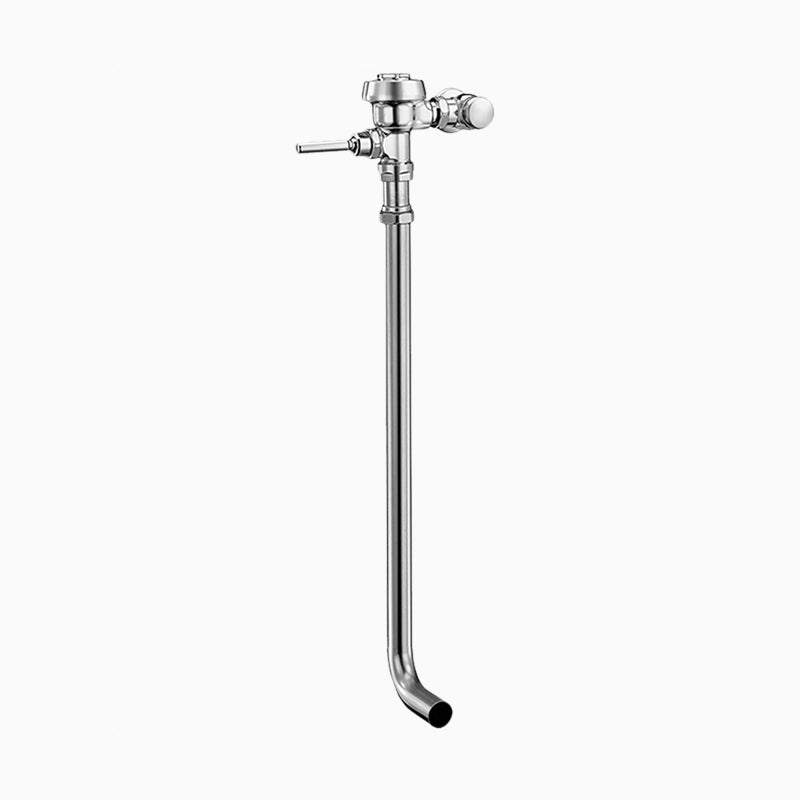

The Sloan Royal 137-1.6 is a manual diaphragm-type flush valve for a water closet. It delivers 1.6 gallons per flush, with an exposed body. It features a permex synthetic rubber diaphragm seat.
Sloan ROYAL 137 exposed manual squat toilet flushometer with CID technology, dezincification-resistant brass.
Options on this configuration: W/F109; 48; IN; BEND. Sloan model number: Royal 137-1.6. Sloan's own price-list description: ROYAL 137-1.6 W/F109 48 IN BEND.
Features
- Flush volumes start as low as 1.6 gpf/6.0 Lpf
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Non-hold-open handle prevents external water adjustment and saves water
- Adjustable tailpiece
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, 1.6 gallons per flush.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
Specifications
- Type: Flushometer
- Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
- Operation: Manual
- MPN: Royal 137-1.6
- Certifications: ASSE-1037
- Fixture Served: Water Closet
- Body Style: Exposed
- Volume per Flush (gal): 1.6
Details
| Series | ROYAL 137 | Device Type | Flushometer |
| Seat Material | PERMEX Synthetic Rubber Diaphragm | Operation | Manual |
| Options | W/F109, 48, IN, BEND | Fixture Served | Water Closet |
| Body style | Exposed | Cycle volume gal | 1.6 gal |
Certifications & Standards
| ASSE-1037 | — |
Compare with similar products
| Fixture Served | Water Closet
| Water Closet
|
| Series | ROYAL 137
| SLOAN 112
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Flushometer
| Flushometer
|
| Seat Material | PERMEX Synthetic Rubber Diaphragm
| High-Chloramine-Resistant PERMEX Diaphragm
|
| Operation | Manual
| Manual
|
| Certifications | ASSE-1037
| ADA, Buy American Act, IAPMO, ASSE-1037
|
| Options | W/F109, 48, IN, BEND
| No Control Stop (XD)
|
