Description

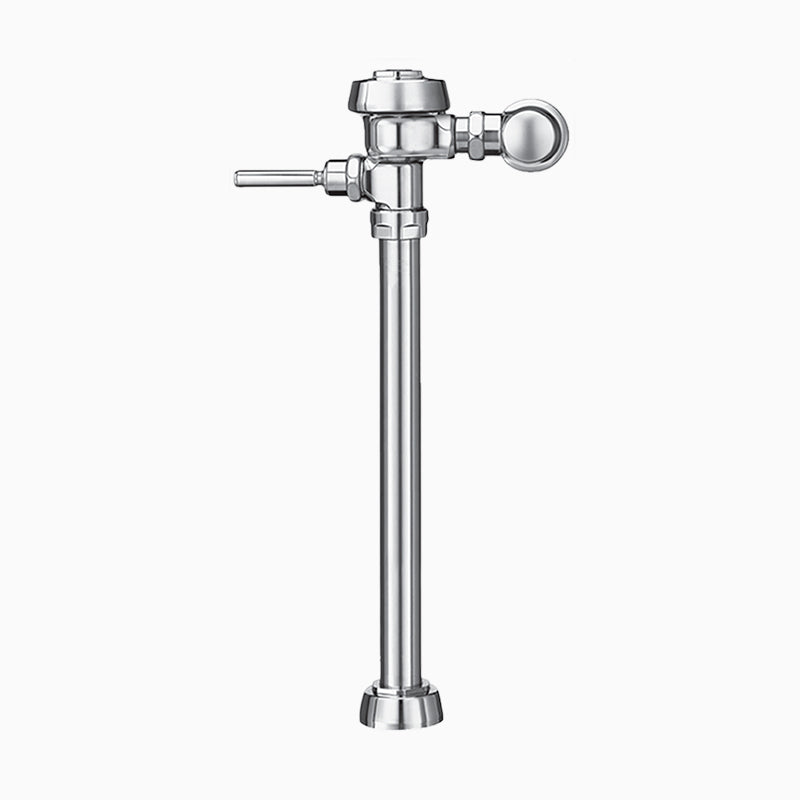

The Sloan ROYAL 117-6.5-E-CP is a manual diaphragm-type flush valve for a service sink. It delivers 6.5 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body and a permex synthetic rubber diaphragm seat.
Sloan ROYAL 117 exposed service sink flushometer delivers 6.5 gpf with dezincification-resistant brass and ASSE 1037 compliance.
Options on this configuration: 1" Straight Control Stop (E). Sloan model number: ROYAL 117-6.5-E-CP.
Features
- 6.5 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, 1" Straight Control Stop
- Standard flush volume is 6.5 gpf /24.6 Lpf
- Flushometers may be ordered with a handle at the front or a push-button actuator
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a service sink, 6.5 gallons per flush, a top spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA and ASSE-1037.
- What control stop ships with this valve?
- 1" Straight, per Sloan's own spec for this model.
Specifications
- Type: Flushometer
- Inlet Size: 1"
- Outlet Size: 1-1/2"
- Body Material: Semi-Red Brass
- Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
- Operation: Manual
- Control Stop: 1" Straight
- Country of Origin: USA
- MPN: ROYAL 117-6.5-E-CP
- Certifications: ADA, Buy American Act, ASSE-1037
- Fixture Served: Service Sink
- Body Style: Exposed
- Spud Connection: Top Spud
- Rough-In (in): 24"
- Volume per Flush (gal): 6.5
- Dual Flush: No
- Finish: Polished Chrome
- Min Operating Pressure (PSI): 15
- Max Operating Pressure (PSI): 80
Product Information
Dimensions
| Inlet Size | 1" | Outlet Size | 1-1/2" |
Details
| Series | ROYAL 117 | Device Type | Flushometer |
| Body Material | Semi-Red Brass | Seat Material | PERMEX Synthetic Rubber Diaphragm |
| Operation | Manual | Options | 1" Straight Control Stop (E) |
| Shutoff | 1" Straight | Fixture Served | Service Sink |
| Body style | Exposed | Coating | Polished Chrome |
| Cycle volume gal | 6.5 gal | Dual flush | No |
| Operating pressure min psi | 15 PSI | Rough in in | 24" |
| Spud connection | Top Spud | — | — |
Certifications & Standards
| ADA | Buy American Act |
| ASSE-1037 | — |
