Description

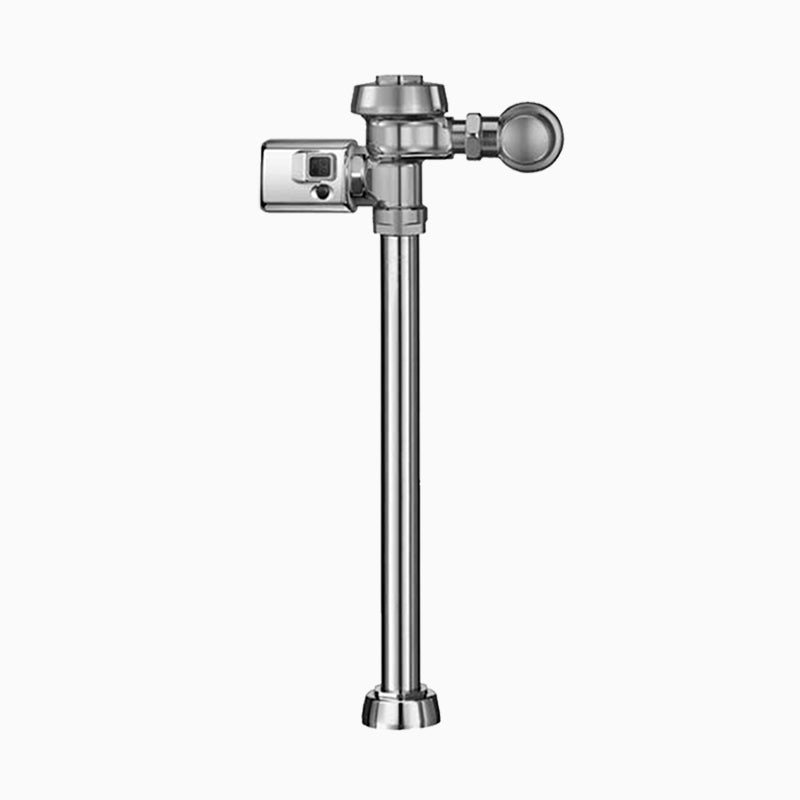

The Sloan Royal 115-1.6 is a sensor-operated diaphragm-type flush valve for a water closet. It delivers 1.6 gallons per flush, with an exposed body. It features a permex synthetic rubber diaphragm seat.
Efficient flushometer with 1.6 gpf/6.0 Lpf flush volume. CID technology enhances water efficiency. ADA-compliant handle prevents excess flushing.
Options on this configuration: M; NOR. Sloan model number: Royal 115-1.6. Sloan's own price-list description: ROYAL 115-1.6 SMO M NOR.
Features
- Flush volumes start as low as 1.6 gpf/6.0 Lpf
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Integrity of the product is maintained with the vandal-resistant stop cap
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece accommodates different height requirements
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, 1.6 gallons per flush.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- How is it powered, and what happens in a power outage?
- Battery-powered -- no wiring required.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
Specifications
- Type: Flushometer
- Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
- Operation: Sensor
- MPN: Royal 115-1.6
- Certifications: ASSE-1037
- Fixture Served: Water Closet
- Body Style: Exposed
- Volume per Flush (gal): 1.6
- Vandal Resistant: Yes
- Power Source: DC (Battery)
Details
| Series | ROYAL 115 SMO | Device Type | Flushometer |
| Seat Material | PERMEX Synthetic Rubber Diaphragm | Operation | Sensor |
| Options | M, NOR | Fixture Served | Water Closet |
| Body style | Exposed | Cycle volume gal | 1.6 gal |
| Vandal resistant | Yes | Power source | DC (Battery) |
Certifications & Standards
| ASSE-1037 | — |
Compare with similar products
| Fixture Served | Water Closet
| Urinal
|
| Series | ROYAL 115 SMO
| SLOAN 8186
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Flushometer
| Flushometer
|
| Seat Material | PERMEX Synthetic Rubber Diaphragm
| High-Chloramine-Resistant PERMEX Diaphragm
|
| Operation | Sensor
| Sensor
|
| Certifications | ASSE-1037
| ADA, Buy American Act, BABA, IAPMO, WaterSense, ASSE-1037
|
