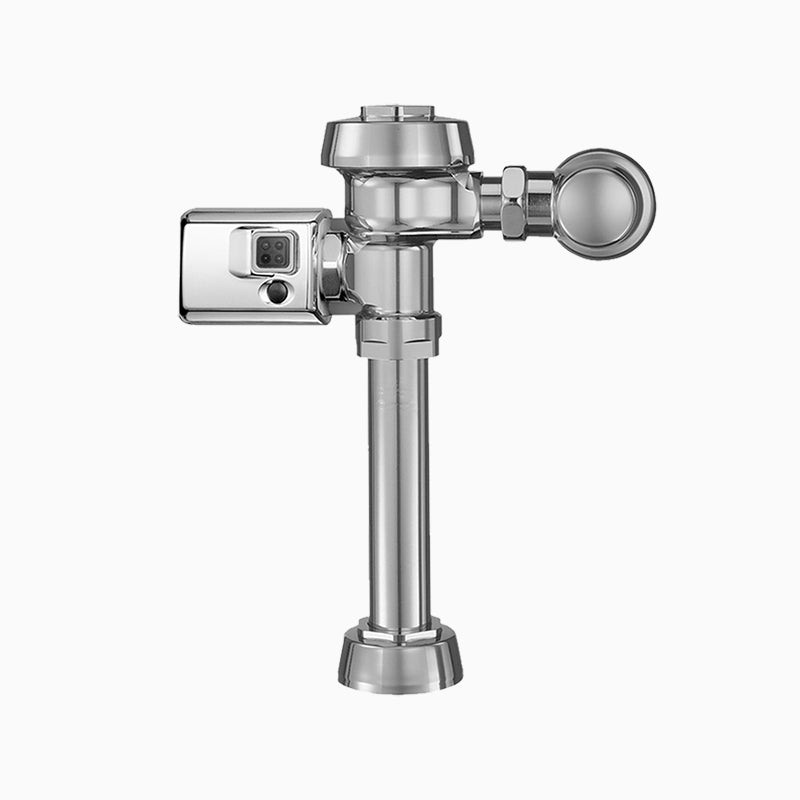

Sloan Royal 111 SMO Exposed Battery-Powered Sensor Water Closet Flushometer

The Sloan Royal 111 is a sensor-operated diaphragm-type flush valve for a water closet. It features a permex synthetic rubber diaphragm seat.

ROYAL 111 SMO flushometer with PERMEX® synthetic rubber diaphragm and semi-red brass components. Compliant with ASSE 1037. Engineered for commercial durability.

Options on this configuration: M; NOR. Sloan model number: Royal 111. Sloan's own price-list description: ROYAL 111 SMO M NOR.

Features

• All organic rubber has been replaced with synthetic compounds
• Critical components, including cover, valve body, control stop and sweat solder kit, are made of semi-red brass
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

How is it powered, and what happens in a power outage?

Battery-powered -- no wiring required.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

Specifications

• Type: Flushometer
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Sensor
• MPN: Royal 111
• Certifications: ASSE-1037
• Fixture Served: Water Closet
• Body Style: Exposed
• Power Source: DC (Battery)
