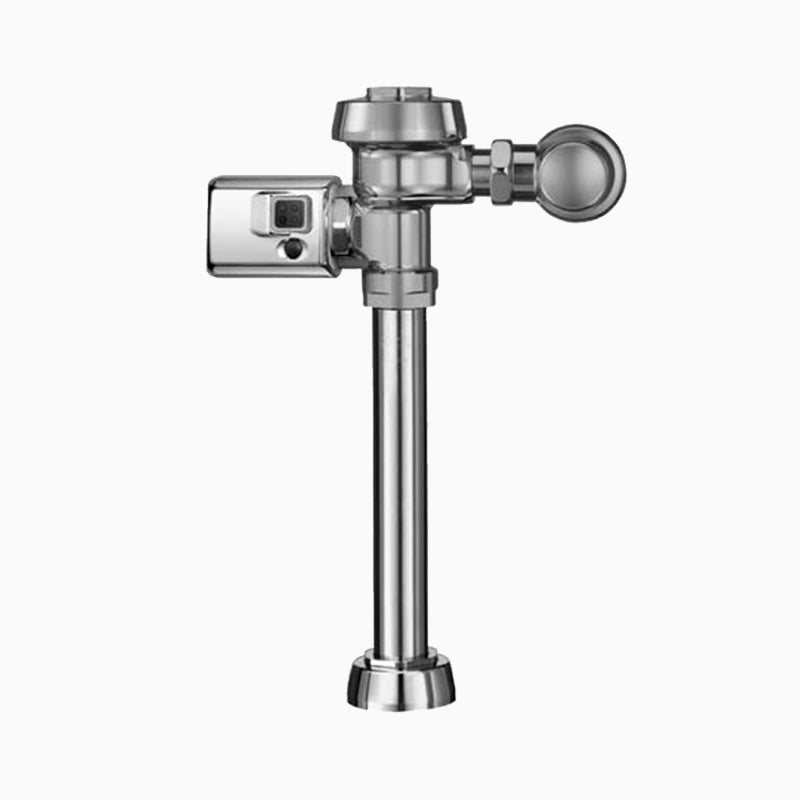

The Sloan ROYAL 113 SMO-1.6-CP-TP is a sensor-operated diaphragm-type flush valve for a water closet. It delivers 1.6 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body and a permex synthetic rubber diaphragm seat.
Efficient flushometer with 1.6 gpf/6.0 Lpf and CID technology for precise water usage. ADA-compliant handle and vandal-resistant design enhance commercial durability.
Options on this configuration: Trap Primer Outlet Tube (TP); M. Sloan model number: ROYAL 113 SMO-1.6-CP-TP. Sloan's own price-list description: ROYAL 113-1.6 SMO M TP.
Features
- 1.6 gpf, Polished Chrome Finish, 1.5" Flush Connection, Fixture Connection Top Spud, Single Flush, 1" Inlet, 1" Control Stop, Trap Primer Outlet Tube, Electrical Override, Battery, Infrared
- Flush volumes start as low as 1.6 gpf/6.0 Lpf
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Integrity of the product is maintained with the vandal-resistant stop cap
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, 1.6 gallons per flush, a top spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- How is it powered, and what happens in a power outage?
- Battery-powered -- no wiring required.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA and ASSE-1037.
Specifications
- Type: Flushometer
- Inlet Size: 1"
- Outlet Size: 1-1/2"
- Body Material: Semi-Red Brass
- Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
- Operation: Sensor
- MPN: ROYAL 113 SMO-1.6-CP-TP
- Certifications: ADA, Buy American Act, ASSE-1037
- Fixture Served: Water Closet
- Body Style: Exposed
- Spud Connection: Top Spud
- Rough-In (in): 16"
- Volume per Flush (gal): 1.6
- Dual Flush: No
- Finish: Polished Chrome
- Vandal Resistant: Yes
- Min Operating Pressure (PSI): 15
- Max Operating Pressure (PSI): 80
- Power Source: DC (Battery)
- Sensor Type: Infrared
- Override Type: Electrical Override
- Sensing Range (in): 22"-42"
Dimensions
| Inlet Size | 1" | Outlet Size | 1-1/2" |
Details
| Series | ROYAL 113 SMO | Device Type | Flushometer |
| Body Material | Semi-Red Brass | Seat Material | PERMEX Synthetic Rubber Diaphragm |
| Operation | Sensor | Options | Trap Primer Outlet Tube (TP), M |
| Fixture Served | Water Closet | Body style | Exposed |
| Coating | Polished Chrome | Cycle volume gal | 1.6 gal |
| Dual flush | No | Operating pressure min psi | 15 PSI |
| Rough in in | 16" | Spud connection | Top Spud |
| Vandal resistant | Yes | Override type | Electrical Override |
| Power source | DC (Battery) | Sensing range in | 22"-42" |
| Sensor type | Infrared | — | — |
Certifications & Standards
| ADA | Buy American Act |
| ASSE-1037 | — |
