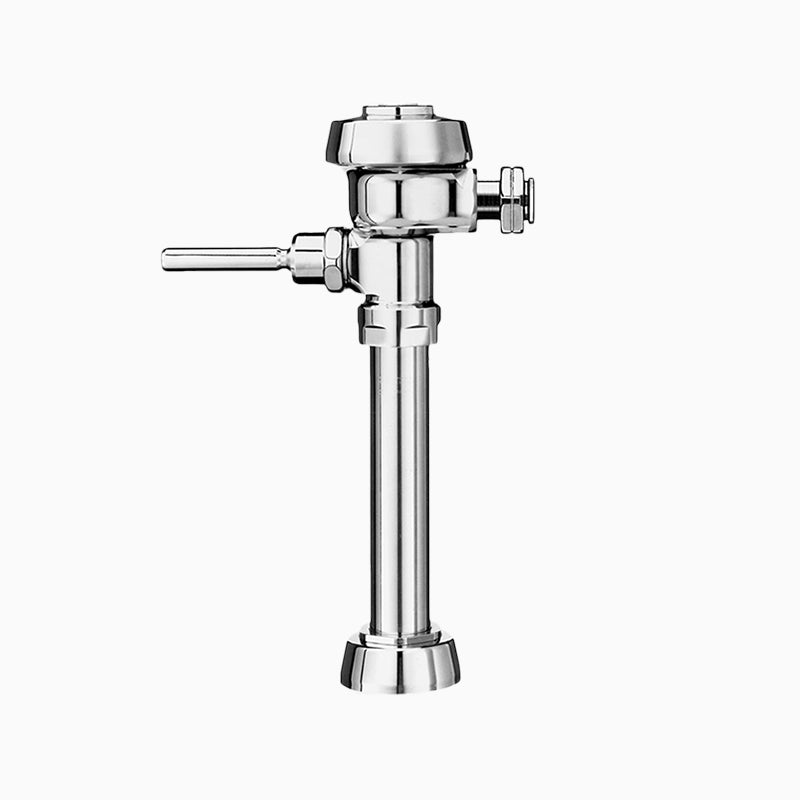

Sloan Royal 112-4.5 Exposed Manual Flushometer, 4.5 gpf

The Sloan Royal 112-4.5 is a manual diaphragm-type flush valve for a water closet. It delivers 4.5 gallons per flush, with an exposed body. It features a permex synthetic rubber diaphragm seat.

ADA-compliant exposed manual flushometer with CID technology, dezincification-resistant brass castings, and a vandal-resistant stop cap.

Options on this configuration: No Control Stop (XD). Sloan model number: Royal 112-4.5.

Features

• Various water-saving flush volumes for urinals and water closets
• Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents fixture from exceeding intended flush volume
• Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
• Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
• Vandal-resistant stop cap prevents tampering
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet, 4.5 gallons per flush.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

What control stop ships with this valve?

None Included, per Sloan's own spec for this model.

Specifications

• Type: Flushometer
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Manual
• Control Stop: None Included
• MPN: Royal 112-4.5
• Certifications: ASSE-1037
• Fixture Served: Water Closet
• Body Style: Exposed
• Volume per Flush (gal): 4.5
• Vandal Resistant: Yes
