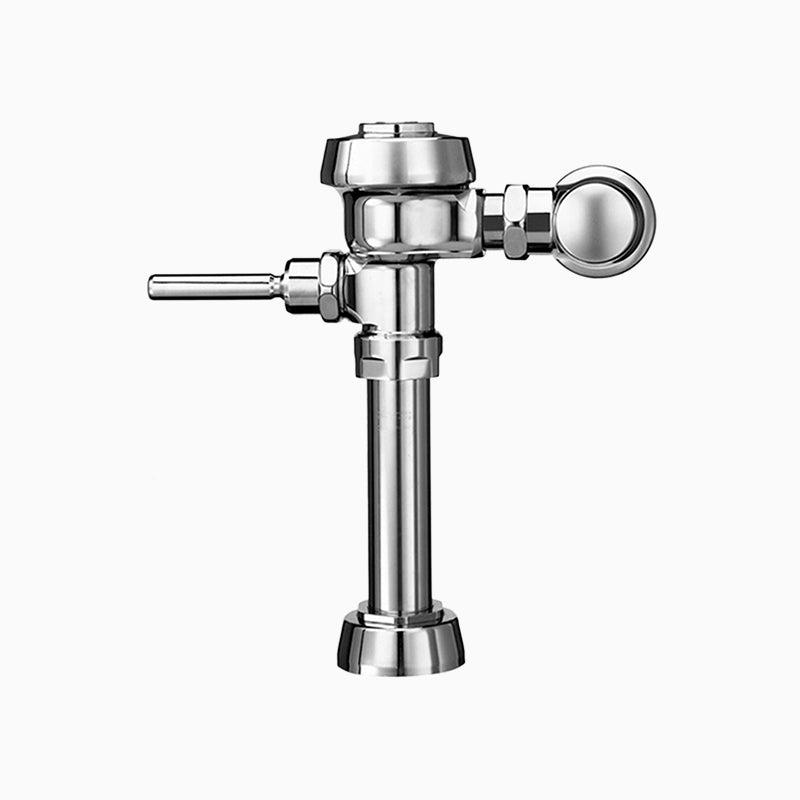

Sloan Royal 110-2.4 Exposed Manual Flushometer, 2.4 gpf, Less Vacuum Breaker, Less Flush Connection, Whitworth Thread, NF2A

The Sloan Royal 110-2.4 is a manual diaphragm-type flush valve for a water closet. It delivers 2.4 gallons per flush, with an exposed body. It features a permex synthetic rubber diaphragm seat.

Sloan ROYAL 110 exposed manual flushometer with CID technology, ADA handle, and vandal-resistant construction for commercial water closets.

Options on this configuration: Less Vacuum Breaker (order separately) (XYV); Less Flush Connection (L/FC); Whitworth Thread (WWT); NF2A. Sloan model number: Royal 110-2.4. Sloan's own price-list description: ROYAL 110-2.4 XYV WWT NF2A L/FC.

Features

• Flush volumes start as low as 3.5 gpf/13.2 Lpf
• Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
• Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
• Integrity of the product is maintained with the vandal-resistant stop cap
• Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
• Adjustable tailpiece
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet, 2.4 gallons per flush.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

Specifications

• Type: Flushometer
• Diaphragm Material: PERMEX Synthetic Rubber Diaphragm
• Operation: Manual
• MPN: Royal 110-2.4
• Certifications: ASSE-1037
• Fixture Served: Water Closet
• Body Style: Exposed
• Volume per Flush (gal): 2.4
• Vandal Resistant: Yes
• Backflow Device: None (Order Separately)
