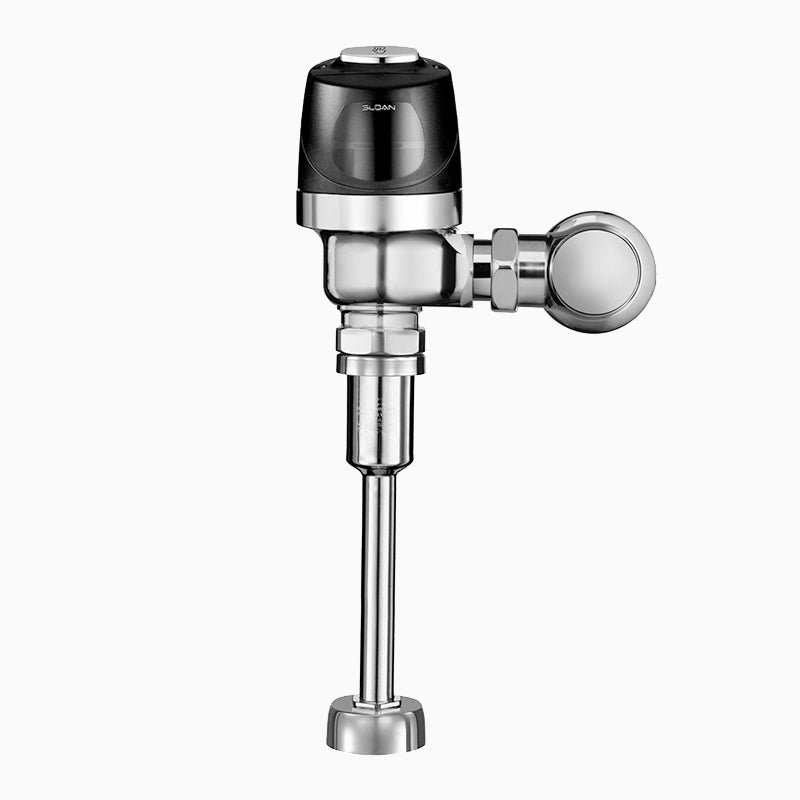

Sloan 8180 Exposed Battery-Powered Sensor Urinal Flushometer (1.5 GPF)

The SLOAN 8180-1.5-CP is a sensor-operated diaphragm-type flush valve for a urinal. It delivers 1.5 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body and a high-chloramine-resistant permex diaphragm seat.

SLOAN 8180: Exposed sensor urinal flushometer with PERMEX® diaphragm and Linear Filtered Bypass. ASTM-compliant brass construction. ASSE 1037 certified.

Base configuration: no option suffixes on this model number (SLOAN 8180-1.5-CP).

Features

• 1.5 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Battery
• High chloramine resistant PERMEX®synthetic rubber diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a urinal, 1.5 gallons per flush, a top spud connection.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

How is it powered, and what happens in a power outage?

Battery-powered -- no wiring required.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ADA and ASSE-1037.

Specifications

• Type: Flushometer
• Inlet Size: 1"
• Outlet Size: 1-1/4"
• Body Material: Semi-Red Brass
• Diaphragm Material: High-Chloramine-Resistant PERMEX Diaphragm
• Operation: Sensor
• MPN: SLOAN 8180-1.5-CP
• Certifications: ADA, Buy American Act, IAPMO, ASSE-1037
• Fixture Served: Urinal
• Body Style: Exposed
• Spud Connection: Top Spud
• Rough-In (in): 11.5"
• Volume per Flush (gal): 1.5
• Dual Flush: No
• Finish: Polished Chrome
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
• Power Source: DC (Battery)
