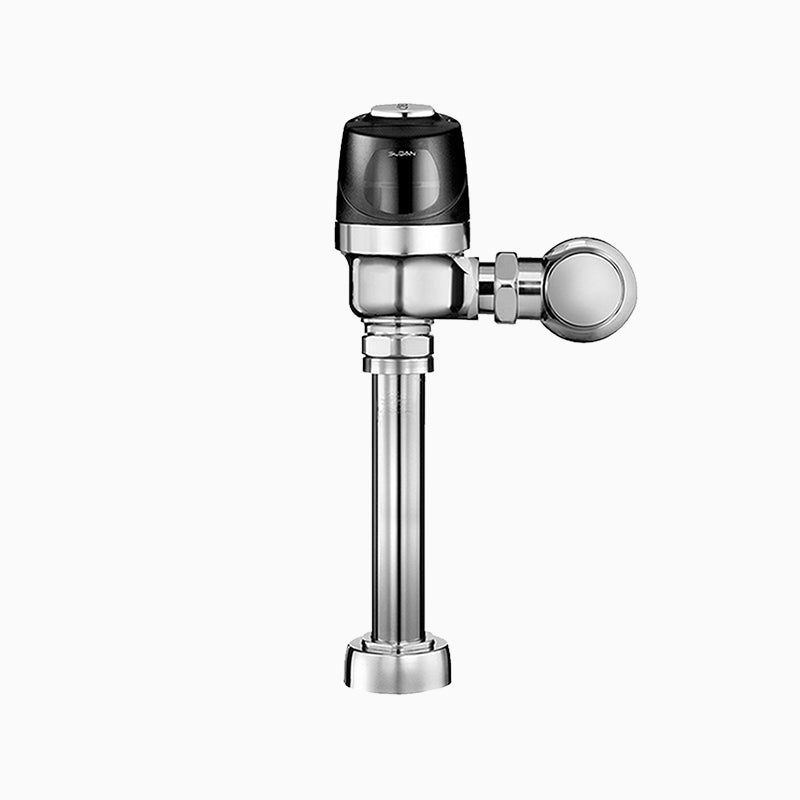

The SLOAN 8113-1.6-CP is a sensor-operated diaphragm-type flush valve for a water closet. It delivers 1.6 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body and a high-chloramine-resistant permex diaphragm seat.

SLOAN 8113: Exposed sensor flushometer with PERMEX® diaphragm and Linear Filtered Bypass. ASTM-compliant brass components. ASSE 1037 certified.

Base configuration: no option suffixes on this model number (SLOAN 8113-1.6-CP).

Features

1.6 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Electrical Override, Battery
High chloramine resistant PERMEX®synthetic rubber diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?: Per Sloan's own spec, it serves a water closet, 1.6 gallons per flush, a top spud connection.
Is this exposed or concealed, and does it need a wall box?: Exposed -- the working parts are visible on the wall surface.
How is it powered, and what happens in a power outage?: Battery-powered -- no wiring required.
Is this ADA, WaterSense, or ASSE 1037 listed?: Yes -- Sloan lists it as ADA and ASSE-1037.

Specifications

Type: Flushometer
Inlet Size: 1"
Outlet Size: 1-1/2"
Body Material: Semi-Red Brass
Diaphragm Material: High-Chloramine-Resistant PERMEX Diaphragm
Operation: Sensor
MPN: SLOAN 8113-1.6-CP
Certifications: ADA, Buy American Act, IAPMO, ASSE-1037
Fixture Served: Water Closet
Body Style: Exposed
Spud Connection: Top Spud
Rough-In (in): 16"
Volume per Flush (gal): 1.6
Dual Flush: No
Finish: Polished Chrome
Min Operating Pressure (PSI): 15
Max Operating Pressure (PSI): 80
Power Source: DC (Battery)
Override Type: Electrical Override
