Similar products
Specifications
Description

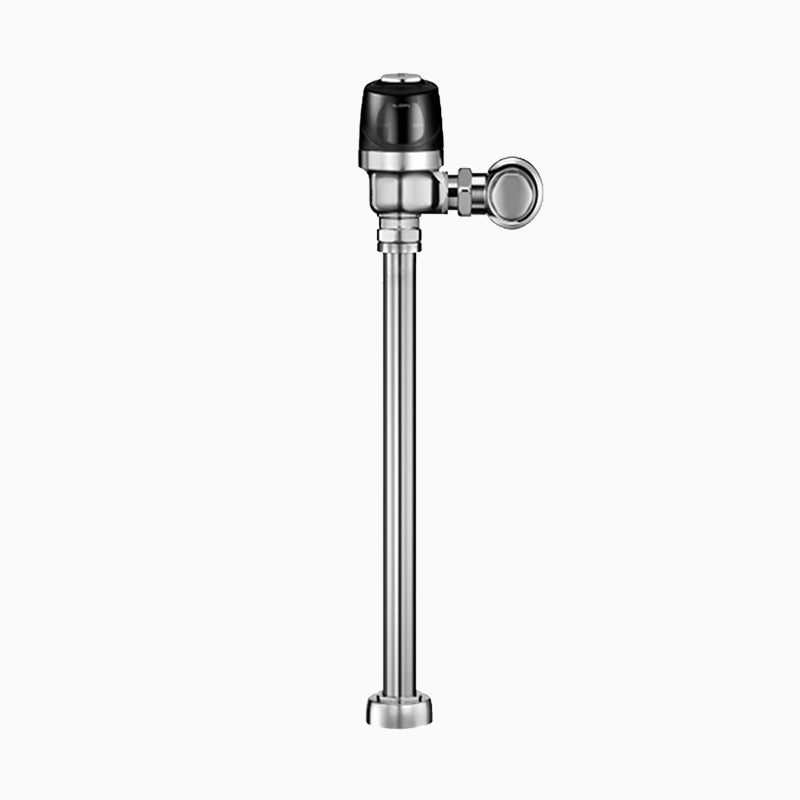

The Sloan 8115-1.28 is a sensor-operated diaphragm-type flush valve for a water closet. It delivers 1.28 gallons per flush, with an exposed body. It features a high-chloramine-resistant permex diaphragm seat.
Exposed sensor flushometer with PERMEX® diaphragm and Linear Filtered Bypass for superior performance in commercial settings. ASTM compliant.
Options on this configuration: Trap Primer Outlet Tube (TP); Dual-Filtered Fixed Bypass Diaphragm (DFB). Sloan model number: Sloan 8115-1.28.
Features
- High chloramine resistant PERMEX®synthetic rubber diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, 1.28 gallons per flush.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- How is it powered, and what happens in a power outage?
- Battery-powered -- no wiring required.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
Specifications
- Type: Flushometer
- Diaphragm Material: High-Chloramine-Resistant PERMEX Diaphragm
- Operation: Sensor
- MPN: Sloan 8115-1.28
- Certifications: ASSE-1037
- Fixture Served: Water Closet
- Body Style: Exposed
- Volume per Flush (gal): 1.28
- Power Source: DC (Battery)
Details
| Series | SLOAN 8115 | Device Type | Flushometer |
| Seat Material | High-Chloramine-Resistant PERMEX Diaphragm | Operation | Sensor |
| Options | Trap Primer Outlet Tube (TP), Dual-Filtered Fixed Bypass Diaphragm (DFB) | Fixture Served | Water Closet |
| Body style | Exposed | Cycle volume gal | 1.28 gal |
| Power source | DC (Battery) | — | — |
Certifications & Standards
| ASSE-1037 | — |
Compare with similar products
| Fixture Served | Water Closet
| Urinal
|
| Series | SLOAN 8115
| SLOAN 8186
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Flushometer
| Flushometer
|
| Seat Material | High-Chloramine-Resistant PERMEX Diaphragm
| High-Chloramine-Resistant PERMEX Diaphragm
|
| Operation | Sensor
| Sensor
|
| Certifications | ASSE-1037
| ADA, Buy American Act, BABA, IAPMO, WaterSense, ASSE-1037
|
