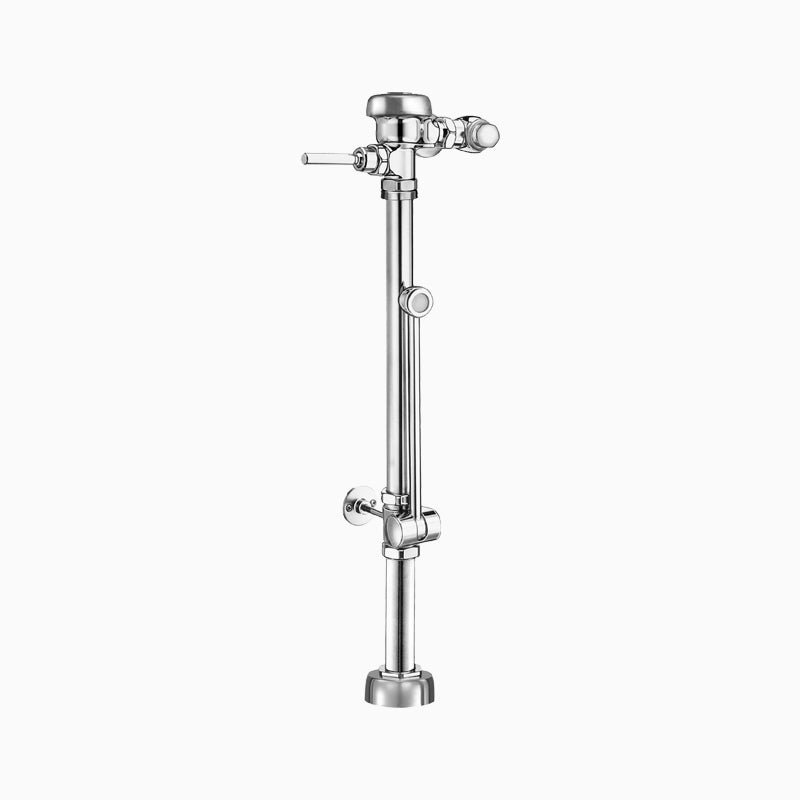

Sloan BPW 1000-1.6 Exposed Manual Flushometer, 1.6 gpf, Less Control Stop, V500AA 24-1/2

The Sloan BPW 1000-1.6 is a manual diaphragm-type flush valve for a service sink. It delivers 1.6 gallons per flush, with an exposed body. It features a high-chloramine-resistant permex diaphragm seat.

Sloan BPW 1000 exposed bedpan washer flushometer with PERMEX diaphragm, Semi-Red Brass construction, and ASSE 1037 compliance.

Options on this configuration: Less Control Stop (order separately) (L/STOP); V500AA; 24-1/2. Sloan model number: Sloan BPW 1000-1.6. Sloan's own price-list description: SLOAN BPW 1000-1.6 V500AA 24-1/2 L/STOP.

Features

• High chloramine resistant PERMEX®synthetic rubber diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a service sink, 1.6 gallons per flush.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

What control stop ships with this valve?

None (Order Separately), per Sloan's own spec for this model.

Specifications

• Type: Flushometer
• Diaphragm Material: High-Chloramine-Resistant PERMEX Diaphragm
• Operation: Manual
• Control Stop: None (Order Separately)
• MPN: Sloan BPW 1000-1.6
• Certifications: ASSE-1037
• Fixture Served: Service Sink
• Body Style: Exposed
• Volume per Flush (gal): 1.6
