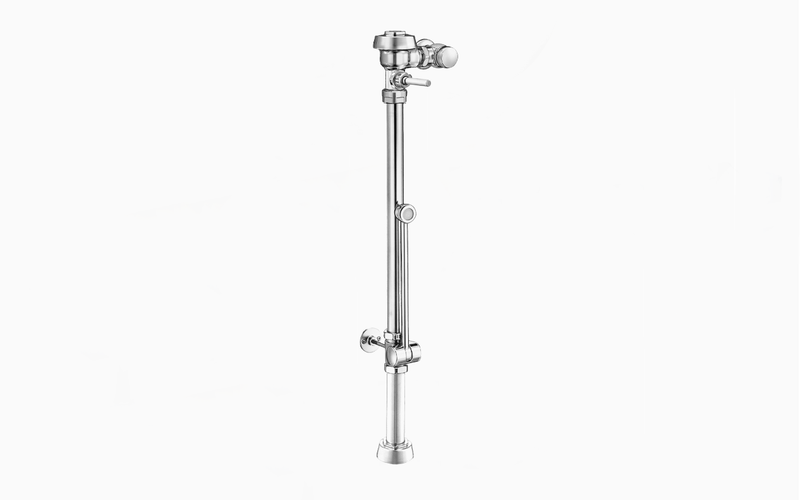

Sloan BPW 1000-4.5 Exposed Manual Flushometer, 4.5 gpf, Top Spud, Polished Chrome

The SLOAN BPW 1000-4.5-CP-H is a manual diaphragm-type flush valve for a service sink. It delivers 4.5 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body and a high-chloramine-resistant permex diaphragm seat.

Sloan BPW 1000 exposed bedpan washer flushometer with PERMEX diaphragm, Semi-Red Brass construction, and ASSE 1037 compliance.

Options on this configuration: Saniguard Handle (SG); Front of Valve Handle (H). Sloan model number: SLOAN BPW 1000-4.5-CP-H.

Features

• 4.5 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Front of Valve Handle
• High chloramine resistant PERMEX®synthetic rubber diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a service sink, 4.5 gallons per flush, a top spud connection.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

What kind of handle does this have?

A Saniguard handle, per Sloan's own spec for this model.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ADA and ASSE-1037.

Specifications

• Type: Flushometer
• Inlet Size: 1"
• Outlet Size: 1-1/2"
• Body Material: Semi-Red Brass
• Diaphragm Material: High-Chloramine-Resistant PERMEX Diaphragm
• Operation: Manual
• MPN: SLOAN BPW 1000-4.5-CP-H
• Certifications: ADA, Buy American Act, ASSE-1037
• Fixture Served: Service Sink
• Body Style: Exposed
• Spud Connection: Top Spud
• Rough-In (in): 34.375"
• Volume per Flush (gal): 4.5
• Dual Flush: No
• Finish: Polished Chrome
• Handle Style: Saniguard
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
