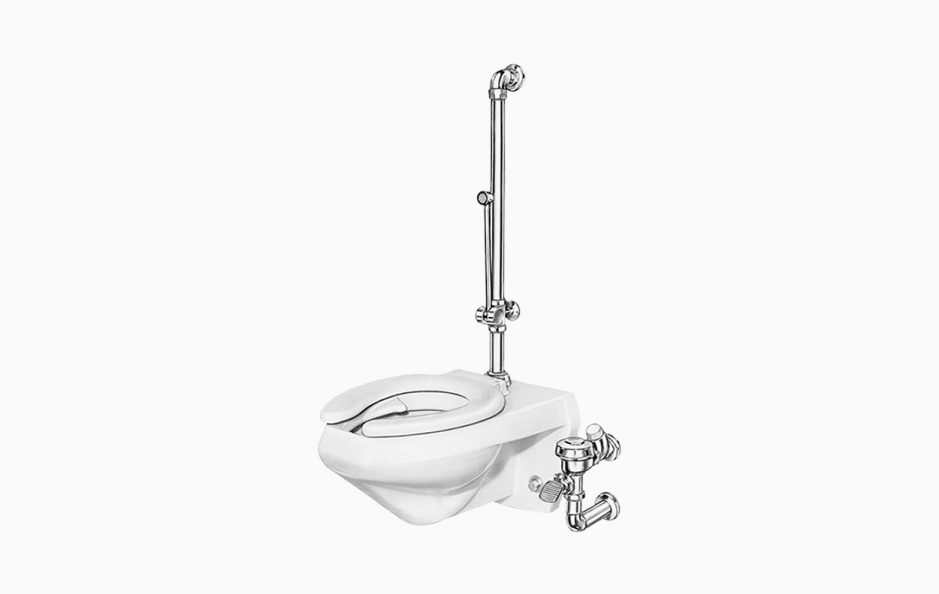

Sloan BPW 1040-1.6 Exposed Manual Flushometer, 1.6 gpf, Top Spud, Polished Chrome

The SLOAN BPW 1040-1.6-CP is a manual diaphragm-type flush valve for a water closet. It delivers 1.6 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body and a high-chloramine-resistant permex diaphragm seat.

Sloan BPW 1040 exposed manual bedpan washer flushometer with chloramine resistant PERMEX diaphragm, foot pedal actuation, and vandal resistant stop cap.

Base configuration: no option suffixes on this model number (SLOAN BPW 1040-1.6-CP).

Features

• 1.6 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush
• High chloramine resistant PERMEXsynthetic rubber diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
• Metal Non-Hold-Open Foot Pedal with Triple Seal Handle Packing
• 1 I.P.S. Screwdriver Bak-Chek Straight Stop
• Free Spinning Vandal Resistant Stop Cap
• Ground Joint Tailpiece
• 1 Female Outlet, 1 Street Ell, Casing and Wall Flange to cover 1 pipe
• 1 1/2 Elbow Flush Connection from wall to 1 1/2 Vacuum Breaker
• High Back Pressure Vacuum Breaker Flush Connection
• Spud Coupling and Flange for 1 1/2 Exposed Top Spud
• Sweat Solder Adapter w/Cover Tube & Cast Wall Flange w/Set Screw
• Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker molded from PERMEX rubber compound for Chloramine resistance
• Bedpan Washer Diverter Assembly with the following features:- Solid One-piece Body Construction- Solid Brass Spray Arm- Counter Balanced Pivot Assembly- Diverter Valve Wall Support

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet, 1.6 gallons per flush, a top spud connection.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

Specifications

• Type: Flushometer
• Inlet Size: 1"
• Outlet Size: 1-1/2"
• Body Material: Semi-Red Brass
• Diaphragm Material: High-Chloramine-Resistant PERMEX Diaphragm
• Operation: Manual
• MPN: SLOAN BPW 1040-1.6-CP
• Certifications: Buy American Act, IAPMO
• Fixture Served: Water Closet
• Body Style: Exposed
• Spud Connection: Top Spud
• Rough-In (in): 33.25"
• Volume per Flush (gal): 1.6
• Dual Flush: No
• Finish: Polished Chrome
• Vandal Resistant: Yes
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
