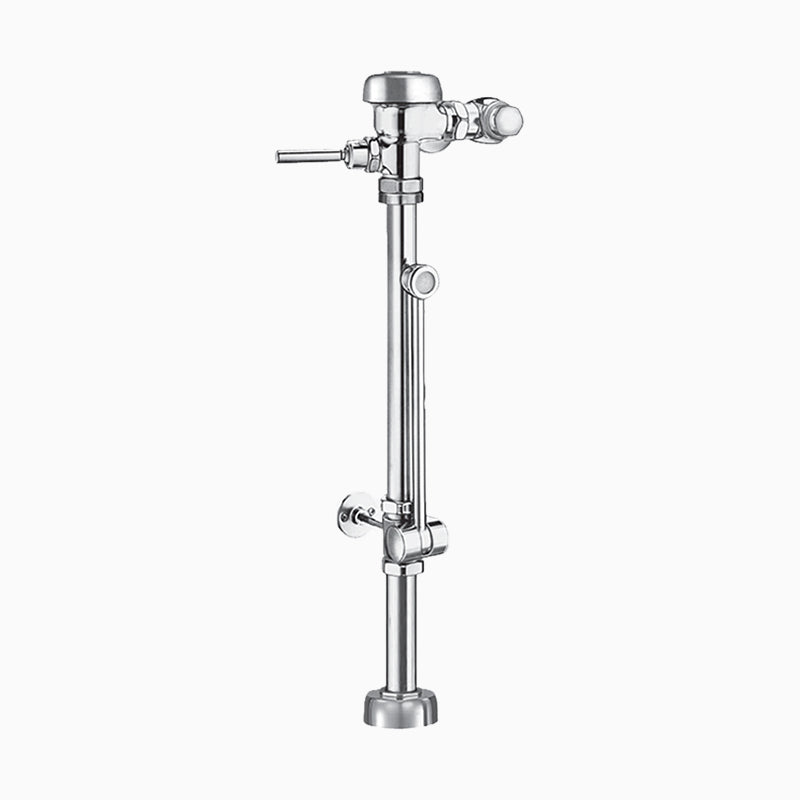

The SLOAN BPW 1100-1.6-CP-SG is a manual diaphragm-type flush valve for a water closet. It delivers 1.6 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body and a high-chloramine-resistant permex diaphragm seat.
Sloan BPW 1100 exposed manual bedpan washer flushometer with PERMEX diaphragm, Semi-Red Brass body, and ASSE 1037 compliance.
Options on this configuration: Saniguard Handle (SG). Sloan model number: SLOAN BPW 1100-1.6-CP-SG.
Features
- 1.6 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Saniguard® Handle
- High chloramine resistant PERMEX®synthetic rubber diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, 1.6 gallons per flush, a top spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- What kind of handle does this have?
- A Saniguard handle, per Sloan's own spec for this model.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA and ASSE-1037.
Specifications
- Type: Flushometer
- Inlet Size: 1"
- Outlet Size: 1-1/2"
- Body Material: Semi-Red Brass
- Diaphragm Material: High-Chloramine-Resistant PERMEX Diaphragm
- Operation: Manual
- MPN: SLOAN BPW 1100-1.6-CP-SG
- Certifications: ADA, Buy American Act, IAPMO, ASSE-1037
- Fixture Served: Water Closet
- Body Style: Exposed
- Spud Connection: Top Spud
- Rough-In (in): 26.5"
- Volume per Flush (gal): 1.6
- Dual Flush: No
- Finish: Polished Chrome
- Handle Style: Saniguard
- Min Operating Pressure (PSI): 15
- Max Operating Pressure (PSI): 80
Dimensions
| Inlet Size | 1" | Outlet Size | 1-1/2" |
Details
| Series | SLOAN BPW 1100 | Device Type | Flushometer |
| Body Material | Semi-Red Brass | Seat Material | High-Chloramine-Resistant PERMEX Diaphragm |
| Operation | Manual | Options | Saniguard Handle (SG) |
| Fixture Served | Water Closet | Body style | Exposed |
| Coating | Polished Chrome | Cycle volume gal | 1.6 gal |
| Dual flush | No | Handle style | Saniguard |
| Operating pressure min psi | 15 PSI | Rough in in | 26.5" |
| Spud connection | Top Spud | — | — |
Certifications & Standards
| ADA | Buy American Act |
| IAPMO | ASSE-1037 |
Compare with similar products
| Fixture Served | Water Closet
| Water Closet
|
| Series | SLOAN BPW 1100
| SLOAN 112
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Flushometer
| Flushometer
|
| Inlet Size | 1"
| 1"
|
| Outlet Size | 1-1/2"
| 1-1/2"
|
| Body Material | Semi-Red Brass
| Semi-Red Brass
|
| Seat Material | High-Chloramine-Resistant PERMEX Diaphragm
| High-Chloramine-Resistant PERMEX Diaphragm
|
| Operation | Manual
| Manual
|
| Certifications | ADA, Buy American Act, IAPMO, ASSE-1037
| ADA, Buy American Act, IAPMO, ASSE-1037
|
| Options | Saniguard Handle (SG)
| No Control Stop (XD)
|
