The SLOAN BPW 1150-3.5-CP-1-1/2-OFST is a manual diaphragm-type flush valve for a water closet. It delivers 3.5 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body and a high-chloramine-resistant permex diaphragm seat.

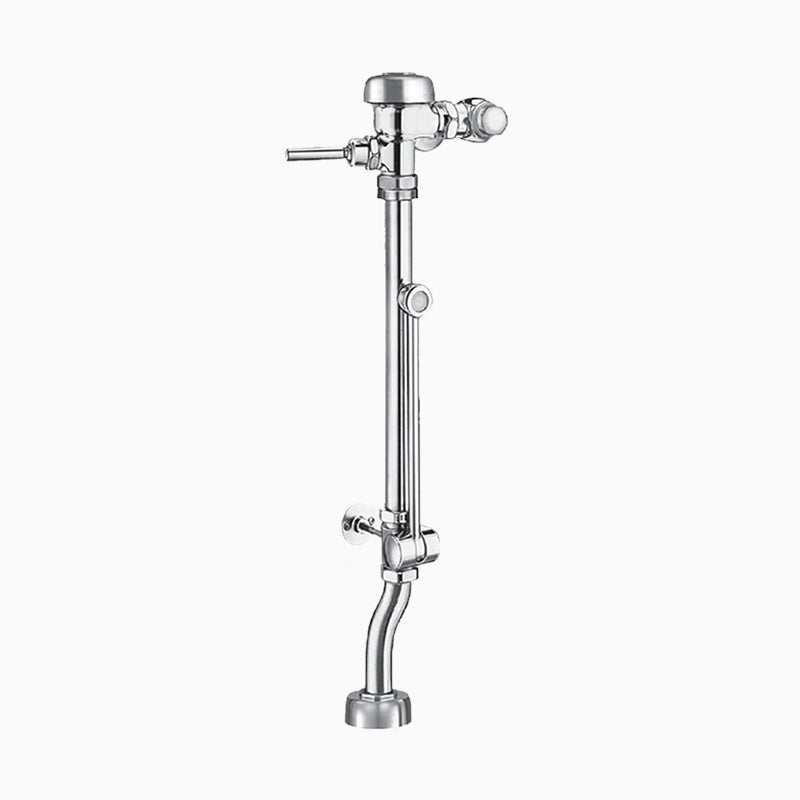

Sloan BPW 1150 exposed manual bedpan washer flushometer, ADA compliant, PERMEX diaphragm, and one-piece body design. Eliminates hose sprays.
Options on this configuration: 1-1/2" Offset (OFST); Dual-Filtered Fixed Bypass Diaphragm (DFB); W/F189; 1; 1/2; OFFST. Sloan model number: SLOAN BPW 1150-3.5-CP-1-1/2-OFST. Sloan's own price-list description: SLOAN BPW 1150- DFB W/ F189 1 1/2 OFFST.
Features
- 3.5 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, 1.5" Offset, F189 Outlet Tube
- Exposed water closet, diaphragm type, chrome-plated Flushometer for floor-mounted or wall-hung top spud bowls and for installation where clearance is required around grab bars
- Meets ADA height requirements
- Automatically operates by means of a self-adaptive infrared sensor
- Presents a leaner, more aesthetic installation, reducing possible bacteria growth on hidden and hard-to-reach surfaces found on other bedpan washer units
- Eliminates the need for unsanitary hose sprays, as well as the additional housekeeping that hoses require and the potential for patient slippage
- Incorporates a patented one-piece construction body design, maintaining the spray arm in an upright position
- Valve body, stop body, diverter body and diverter pivot made from brass casting using semi-red brass for durability and long life
- High chloramine resistant PERMEX® Synthetic Rubber Diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, 3.5 gallons per flush, a top spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA and ASSE-1037.
Specifications
-
Type: Flushometer
-
Inlet Size: 1"
-
Outlet Size: 1-1/2"
-
Body Material: Semi-Red Brass
-
Diaphragm Material: High-Chloramine-Resistant PERMEX Diaphragm
-
Operation: Manual
-
MPN: SLOAN BPW 1150-3.5-CP-1-1/2-OFST
-
Certifications: ADA, Buy American Act, IAPMO, ASSE-1037
-
Fixture Served: Water Closet
-
Body Style: Exposed
-
Spud Connection: Top Spud
-
Rough-In (in): 26.5"
-
Volume per Flush (gal): 3.5
-
Dual Flush: No
-
Finish: Polished Chrome
-
Min Operating Pressure (PSI): 15
-
Max Operating Pressure (PSI): 80
