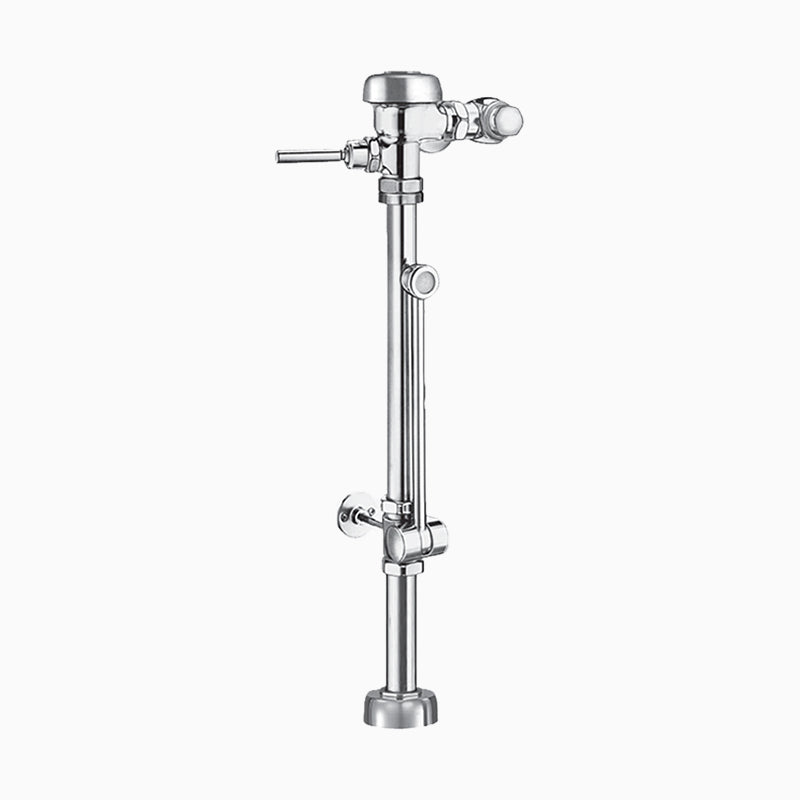

Sloan BPW 1100-1.6 Exposed Manual Flushometer, Top Spud, Polished Chrome, 3" Metal Oscillating, Front of Valve Handle, Split Ring Pipe Support

Roll over image to zoom in

Sloan BPW 1100-1.6 Exposed Manual Flushometer, Top Spud, Polished Chrome, 3" Metal Oscillating, Front of Valve Handle, Split Ring Pipe Support

Name: Sloan BPW 1100-1.6 Exposed Manual Flushometer, Top Spud, Polished Chrome, 3" Metal Oscillating, Front of Valve Handle, Split Ring Pipe Support
Brand: Sloan
SKU: 3789615
Price: 868.78 USD
Availability: InStock

Save $411.52

SloanSKU: 3789615

Call an expert

713-224-1643

Chat Call

Questions? Call (713) 224-1643

The SLOAN BPW 1100-1.6-YI-CP-YJ-L3-HL3 is a manual diaphragm-type flush valve for a water closet. It delivers 1.6 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body and a high-chloramine-resistant permex diaphragm seat.

Sloan BPW 1100 exposed manual bedpan washer flushometer with PERMEX diaphragm, Semi-Red Brass body, and ASSE 1037 compliance.

Options on this configuration: 3" Metal Oscillating, Front of Valve Handle (L3-HL3); Double Wall Bumper (YI); Split Ring Pipe Support (YJ). Sloan model number: SLOAN BPW 1100-1.6-YI-CP-YJ-L3-HL3.

Features

1.6 gpf, Double Wall Bumper, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Split Ring Pipe Support, 3" Metal Oscillating, Front of Valve Push Button
High chloramine resistant PERMEX®synthetic rubber diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?: Per Sloan's own spec, it serves a water closet, 1.6 gallons per flush, a top spud connection.
Is this exposed or concealed, and does it need a wall box?: Exposed -- the working parts are visible on the wall surface.
What kind of handle does this have?: A 3" Metal Oscillating, Front of Valve handle, per Sloan's own spec for this model.
Is this ADA, WaterSense, or ASSE 1037 listed?: Yes -- Sloan lists it as ASSE-1037.

Specifications

Type: Flushometer
Inlet Size: 1"
Outlet Size: 1-1/2"
Body Material: Semi-Red Brass
Diaphragm Material: High-Chloramine-Resistant PERMEX Diaphragm
Operation: Manual
MPN: SLOAN BPW 1100-1.6-YI-CP-YJ-L3-HL3
Certifications: Buy American Act, IAPMO, ASSE-1037
Fixture Served: Water Closet
Body Style: Exposed
Spud Connection: Top Spud
Rough-In (in): 26.5"
Volume per Flush (gal): 1.6
Dual Flush: No
Finish: Polished Chrome
Handle Style: 3" Metal Oscillating, Front of Valve
Min Operating Pressure (PSI): 15
Max Operating Pressure (PSI): 80
