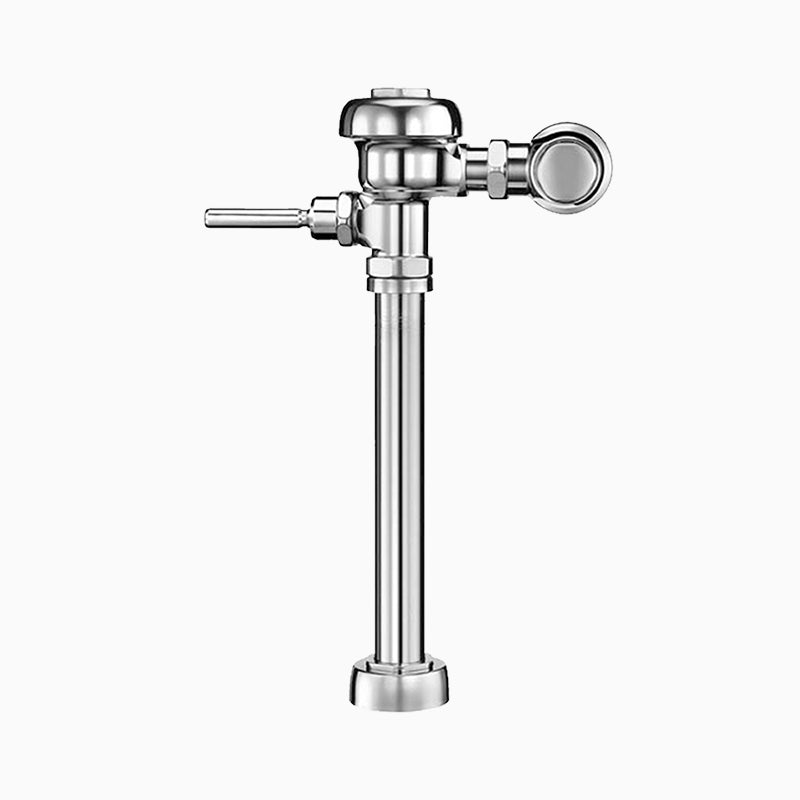

The Sloan 114-1.28 is a manual diaphragm-type flush valve for a water closet. It delivers 1.28 gallons per flush, with an exposed body. It features a high-chloramine-resistant permex diaphragm seat.
Sloan 114 exposed manual flushometer with CID technology, ADA-compliant handle, and PERMEX diaphragm for commercial water closets.
Options on this configuration: Less Control Stop (order separately) (L/STOP); NOR. Sloan model number: Sloan 114-1.28. Sloan's own price-list description: SLOAN 114-1.28 L/STOP NOR.
Features
- Flush volumes start as low as 1.28 gpf/4.8 Lpf
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Integrity of the product is maintained with the vandal-resistant stop cap
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece to accommodate different height requirements
- High chloramine resistant PERMEX® Synthetic Rubber Diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, 1.28 gallons per flush.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
- What control stop ships with this valve?
- None (Order Separately), per Sloan's own spec for this model.
Specifications
- Type: Flushometer
- Diaphragm Material: High-Chloramine-Resistant PERMEX Diaphragm
- Operation: Manual
- Control Stop: None (Order Separately)
- MPN: Sloan 114-1.28
- Certifications: ASSE-1037
- Fixture Served: Water Closet
- Body Style: Exposed
- Volume per Flush (gal): 1.28
- Vandal Resistant: Yes
Details
| Series | SLOAN 114 | Device Type | Flushometer |
| Seat Material | High-Chloramine-Resistant PERMEX Diaphragm | Operation | Manual |
| Options | Less Control Stop (order separately) (L/STOP), NOR | Shutoff | None (Order Separately) |
| Fixture Served | Water Closet | Body style | Exposed |
| Cycle volume gal | 1.28 gal | Vandal resistant | Yes |
Certifications & Standards
| ASSE-1037 | — |
Compare with similar products
| Shutoff | None (Order Separately)
| None Included
|
| Fixture Served | Water Closet
| Water Closet
|
| Series | SLOAN 114
| SLOAN 112
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Flushometer
| Flushometer
|
| Seat Material | High-Chloramine-Resistant PERMEX Diaphragm
| High-Chloramine-Resistant PERMEX Diaphragm
|
| Operation | Manual
| Manual
|
| Certifications | ASSE-1037
| ADA, Buy American Act, IAPMO, ASSE-1037
|
| Options | Less Control Stop (order separately) (L/STOP), NOR
| No Control Stop (XD)
|
