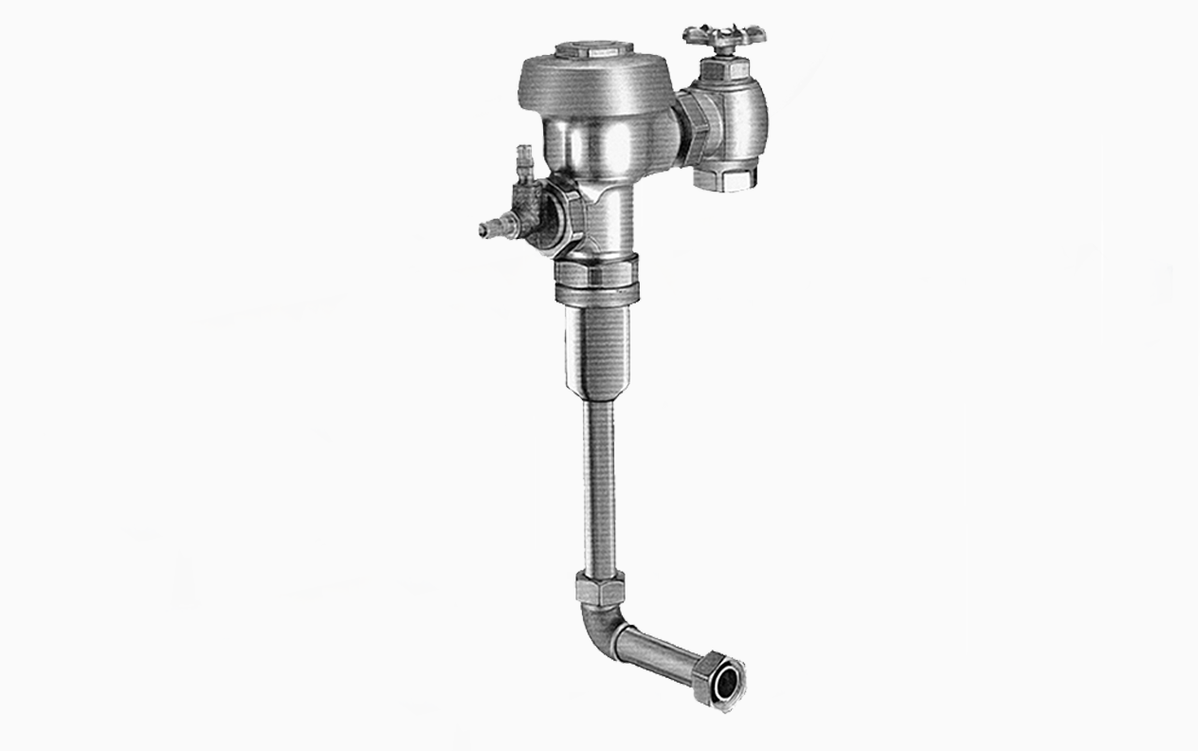

The SLOAN 9613-0.125-RB is a manual diaphragm-type flush valve for a urinal. It delivers 0.125 gallons per flush, with a rear spud connection at a concealed body. It features a semi-red brass body and a high-chloramine-resistant permex diaphragm seat.
Sloan 9613 concealed manual urinal flushometer with linear filtered bypass PERMEX diaphragm, Semi-Red Brass body, and ASSE 1037 compliance.
Options on this configuration: DBP. Sloan model number: SLOAN 9613-0.125-RB. Sloan's own price-list description: SLOAN 9613-0.125 DBP.
Features
- 0.125 gpf, Dual-Filtered Bypass, Rough Brass Finish, Fixture Connection Rear Spud, Single Flush
- High chloramine resistant PERMEX®synthetic rubber diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a urinal, 0.125 gallons per flush, a rear spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as WaterSense and ASSE-1037.
Specifications
- Type: Flushometer
- Inlet Size: 3/4"
- Outlet Size: 3/4"
- Body Material: Semi-Red Brass
- Diaphragm Material: High-Chloramine-Resistant PERMEX Diaphragm
- Operation: Manual
- MPN: SLOAN 9613-0.125-RB
- Certifications: Buy American Act, IAPMO, WaterSense, ASSE-1037
- Fixture Served: Urinal
- Body Style: Concealed
- Spud Connection: Rear Spud
- Rough-In (in): 13.5"
- Volume per Flush (gal): 0.125
- Dual Flush: No
- Finish: Unfinished (Rough Brass)
- Min Operating Pressure (PSI): 15
- Max Operating Pressure (PSI): 80
Dimensions
| Inlet Size | 3/4" | Outlet Size | 3/4" |
Details
| Series | SLOAN 9613 | Device Type | Flushometer |
| Body Material | Semi-Red Brass | Seat Material | High-Chloramine-Resistant PERMEX Diaphragm |
| Operation | Manual | Options | DBP |
| Fixture Served | Urinal | Body style | Concealed |
| Coating | Unfinished (Rough Brass) | Cycle volume gal | 0.125 gal |
| Dual flush | No | Operating pressure min psi | 15 PSI |
| Rough in in | 13.5" | Spud connection | Rear Spud |
Certifications & Standards
| Buy American Act | IAPMO |
| WaterSense | ASSE-1037 |
Compare with similar products
| Fixture Served | Urinal
| Water Closet
|
| Series | SLOAN 9613
| SLOAN 112
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Flushometer
| Flushometer
|
| Inlet Size | 3/4"
| 1"
|
| Outlet Size | 3/4"
| 1-1/2"
|
| Body Material | Semi-Red Brass
| Semi-Red Brass
|
| Seat Material | High-Chloramine-Resistant PERMEX Diaphragm
| High-Chloramine-Resistant PERMEX Diaphragm
|
| Operation | Manual
| Manual
|
| Certifications | Buy American Act, IAPMO, WaterSense, ASSE-1037
| ADA, Buy American Act, IAPMO, ASSE-1037
|
| Options | DBP
| No Control Stop (XD)
|
