Sloan 9613-1.0 Concealed Manual Flushometer, 1.0 gpf, Rear Spud, Unfinished (Rough Brass)

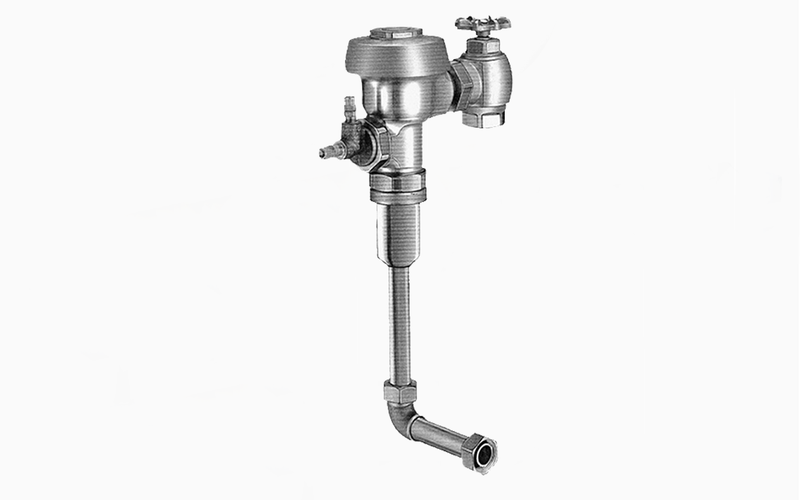

The SLOAN 9613-1.0-RB-MBFW is a manual diaphragm-type flush valve for a urinal. It delivers 1.0 gallons per flush, with a rear spud connection at a concealed body. It features a semi-red brass body and a high-chloramine-resistant permex diaphragm seat.

Sloan 9613 concealed manual urinal flushometer with linear filtered bypass PERMEX diaphragm, Semi-Red Brass body, and ASSE 1037 compliance.

Options on this configuration: Metal Button Fixture Wall Actuator (MBFW); Dual-Filtered Fixed Bypass Diaphragm (DFB). Sloan model number: SLOAN 9613-1.0-RB-MBFW.

Features

• 1.0 gpf, Dual-Filtered Fixed Bypass Diaphragm, Rough Brass Finish, Fixture Connection Rear Spud, Single Flush, Metal Button Fixture Wall Actuator Push Button
• High chloramine resistant PERMEX®synthetic rubber diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a urinal, 1.0 gallons per flush, a rear spud connection.

Is this exposed or concealed, and does it need a wall box?

Concealed -- the body sits behind the wall, with only the cover or trim visible.

What kind of handle does this have?

A Metal Button Fixture Wall Actuator handle, per Sloan's own spec for this model.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

Specifications

• Type: Flushometer
• Inlet Size: 3/4"
• Outlet Size: 3/4"
• Body Material: Semi-Red Brass
• Diaphragm Material: High-Chloramine-Resistant PERMEX Diaphragm
• Operation: Manual
• MPN: SLOAN 9613-1.0-RB-MBFW
• Certifications: Buy American Act, IAPMO, ASSE-1037
• Fixture Served: Urinal
• Body Style: Concealed
• Spud Connection: Rear Spud
• Rough-In (in): 13.5"
• Volume per Flush (gal): 1.0
• Dual Flush: No
• Finish: Unfinished (Rough Brass)
• Handle Style: Metal Button Fixture Wall Actuator
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
