Description

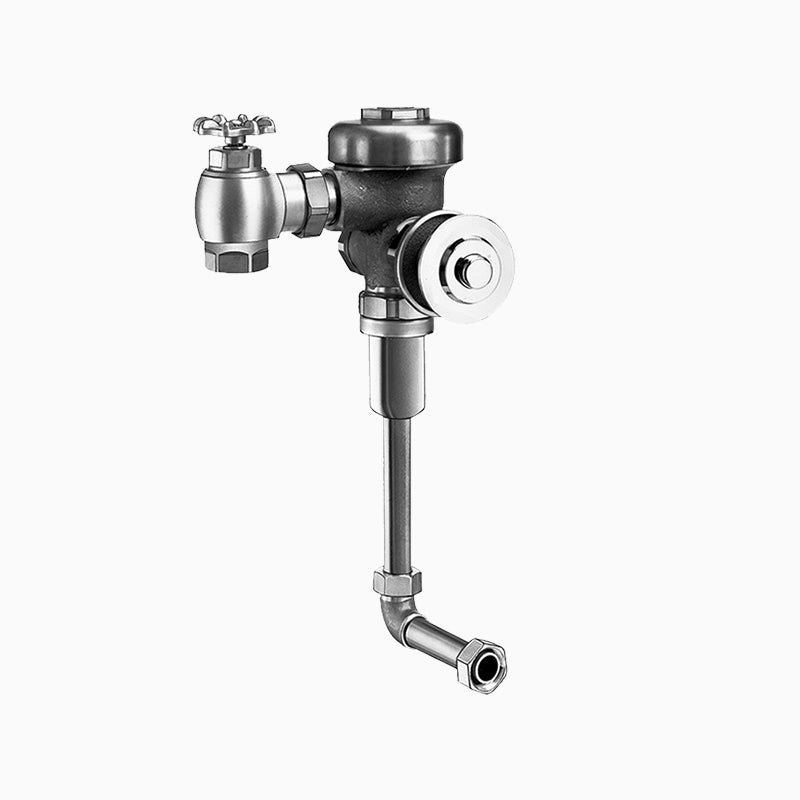

The Sloan 613-1 is a manual diaphragm-type flush valve for a urinal. It delivers 1.0 gallons per flush, with a concealed body. It features a high-chloramine-resistant permex diaphragm seat.
Sloan 613 concealed manual urinal flushometer with PERMEX chloramine-resistant diaphragm, and vandal-proof operation.
Options on this configuration: 9-3/4" L Dimension (LDIM). Sloan model number: Sloan 613-1.
Features
- Royal®, Regal® and Sloan® Prison Flushometers feature all the performance benefits of standard concealed, diaphragm model Flushometers with added durability to withstand rough environments
- Flush volumes as low as 0.5 gpf/1.9 Lpf meet water-efficiency goals
- Choose from Flushometers intended for use with stainless-steel urinal fixtures from various manufacturers
- Choose from Flushometers intended for use with stainless-steel urinal fixtures from various manufacturers
- Diaphragm, handle packing, stop seat and vacuum breaker molded from PERMEX® rubber compound for chloramine resistance
- Vandal-proof, push button operation with ADA-compliant fixture wall or panel-mount actuator options on select models
- Non-hold-open feature keeps fixture from surpassing intended water consumption
- Adjustable tailpiece accommodates various installations
- High chloramine resistant PERMEX® Synthetic Rubber Diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a urinal, 1.0 gallons per flush.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
Specifications
- Type: Flushometer
- Diaphragm Material: High-Chloramine-Resistant PERMEX Diaphragm
- Operation: Manual
- MPN: Sloan 613-1
- Certifications: ASSE-1037
- Fixture Served: Urinal
- Body Style: Concealed
- L Dimension (in): 9-3/4"
- Volume per Flush (gal): 1.0
- Vandal Resistant: Yes
Details
| Series | SLOAN 613 | Device Type | Flushometer |
| Seat Material | High-Chloramine-Resistant PERMEX Diaphragm | Operation | Manual |
| Options | 9-3/4" L Dimension (LDIM) | Fixture Served | Urinal |
| Body style | Concealed | Cycle volume gal | 1.0 gal |
| L dimension in | 9-3/4" | Vandal resistant | Yes |
Certifications & Standards
| ASSE-1037 | — |
Compare with similar products
| Fixture Served | Urinal
| Water Closet
|
| Series | SLOAN 613
| SLOAN 112
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Flushometer
| Flushometer
|
| Seat Material | High-Chloramine-Resistant PERMEX Diaphragm
| High-Chloramine-Resistant PERMEX Diaphragm
|
| Operation | Manual
| Manual
|
| Certifications | ASSE-1037
| ADA, Buy American Act, IAPMO, ASSE-1037
|
| Options | 9-3/4" L Dimension (LDIM)
| No Control Stop (XD)
|
