Similar products
Specifications
Description

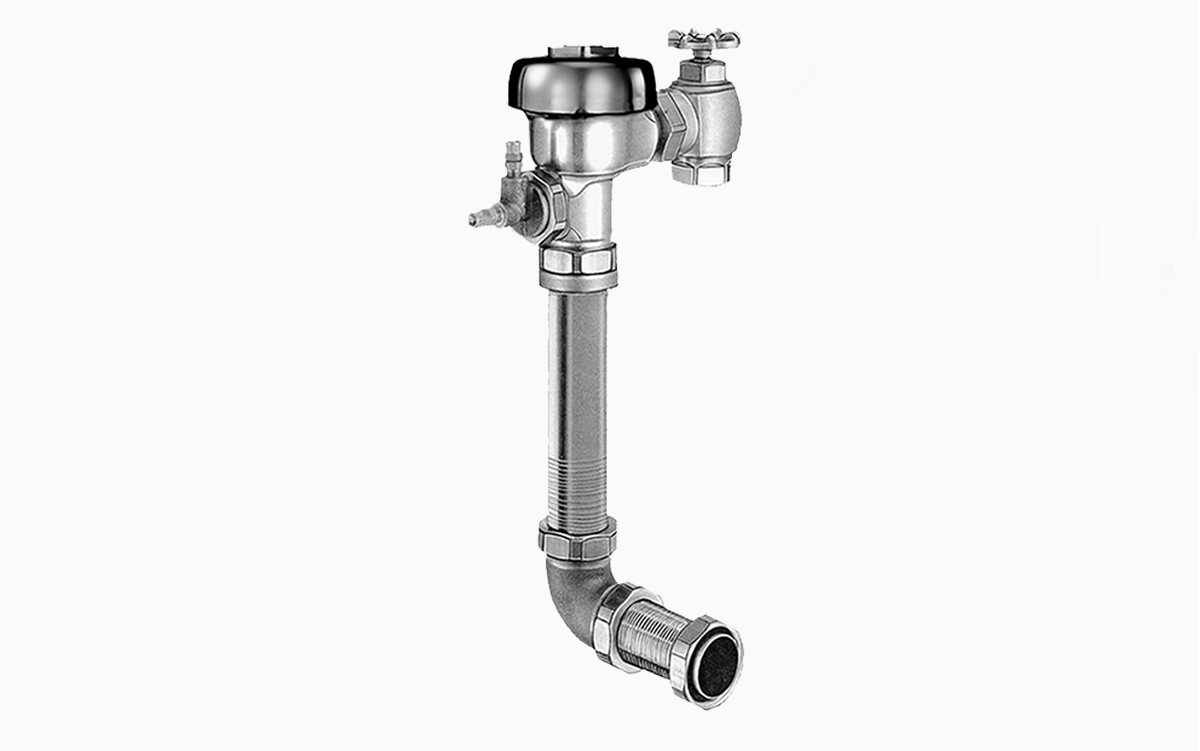

The Sloan 9611-1.6 is a manual diaphragm-type flush valve for a water closet. It delivers 1.6 gallons per flush, with a concealed body. It features a high-chloramine-resistant permex diaphragm seat.
Sloan 9611 concealed manual flushometer with PERMEX diaphragm, chloramine resistance, and ASSE 1037 compliance for commercial water closets.
Options on this configuration: Dual-Filtered Fixed Bypass Diaphragm (DFB); L/STOP/PB-0323308VB. Sloan model number: Sloan 9611-1.6. Sloan's own price-list description: SLOAN 9611-1.6 DFB L/STOP/PB-0323308VB.
Features
- High chloramine resistant PERMEX®synthetic rubber diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, 1.6 gallons per flush.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
Specifications
- Type: Flushometer
- Diaphragm Material: High-Chloramine-Resistant PERMEX Diaphragm
- Operation: Manual
- MPN: Sloan 9611-1.6
- Certifications: ASSE-1037
- Fixture Served: Water Closet
- Body Style: Concealed
- Volume per Flush (gal): 1.6
Details
| Series | SLOAN 9611 | Device Type | Flushometer |
| Seat Material | High-Chloramine-Resistant PERMEX Diaphragm | Operation | Manual |
| Options | Dual-Filtered Fixed Bypass Diaphragm (DFB), L/STOP/PB-0323308VB | Fixture Served | Water Closet |
| Body style | Concealed | Cycle volume gal | 1.6 gal |
Certifications & Standards
| ASSE-1037 | — |
Compare with similar products
| Fixture Served | Water Closet
| Water Closet
|
| Series | SLOAN 9611
| SLOAN 112
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Flushometer
| Flushometer
|
| Seat Material | High-Chloramine-Resistant PERMEX Diaphragm
| High-Chloramine-Resistant PERMEX Diaphragm
|
| Operation | Manual
| Manual
|
| Certifications | ASSE-1037
| ADA, Buy American Act, IAPMO, ASSE-1037
|
| Options | Dual-Filtered Fixed Bypass Diaphragm (DFB), L/STOP/PB-0323308VB
| No Control Stop (XD)
|
