Description

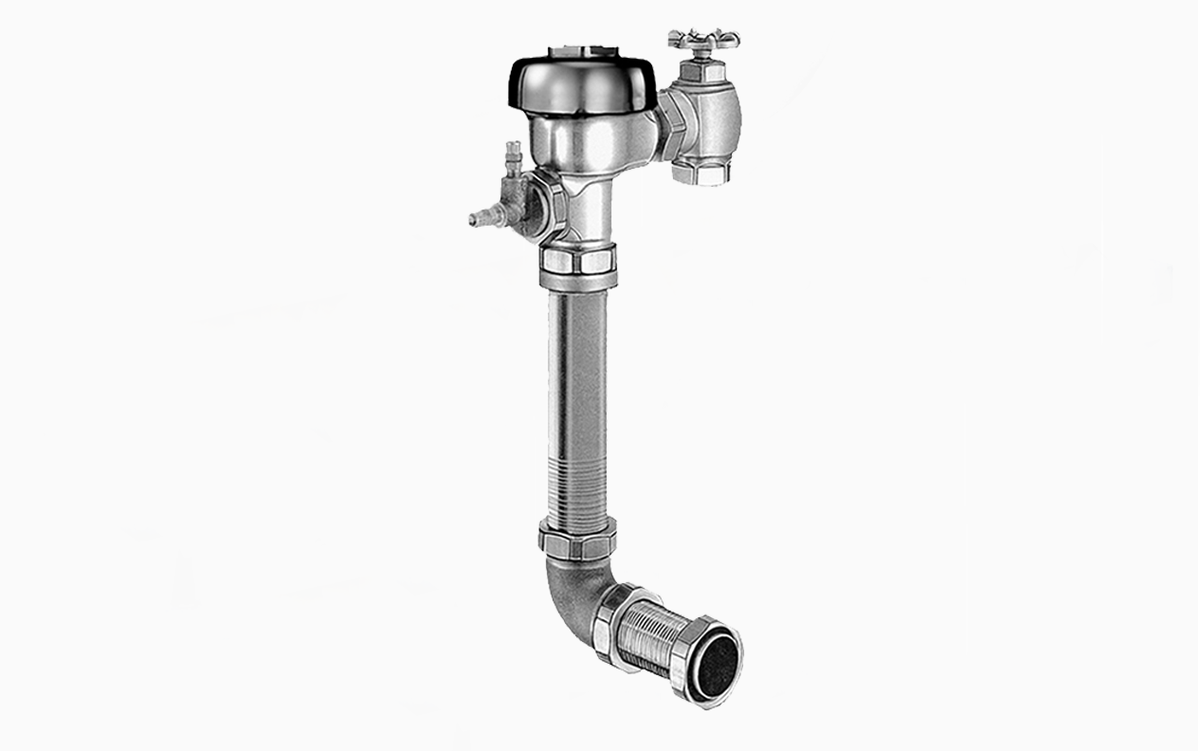

The SLOAN 9611-1.6-RB-AFD-MBFW is a manual diaphragm-type flush valve for a water closet. It delivers 1.6 gallons per flush, with a rear spud connection at a concealed body. It features a semi-red brass body and a high-chloramine-resistant permex diaphragm seat.
Sloan 9611 concealed manual flushometer with PERMEX diaphragm, chloramine resistance, and ASSE 1037 compliance for commercial water closets.
Options on this configuration: Metal Button Fixture Wall Actuator (MBFW); Anti-Flood Device Flush Connection (AFD). Sloan model number: SLOAN 9611-1.6-RB-AFD-MBFW.
Features
- 1.6 gpf, Rough Brass Finish, Anti-Flood Device Flush Connection, Fixture Connection Rear Spud, Single Flush, Metal Button Fixture Wall Actuator Push Button
- High chloramine resistant PERMEX®synthetic rubber diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, 1.6 gallons per flush, a rear spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible.
- What kind of handle does this have?
- A Metal Button Fixture Wall Actuator handle, per Sloan's own spec for this model.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
Specifications
- Type: Flushometer
- Inlet Size: 1"
- Outlet Size: 1-1/2"
- Body Material: Semi-Red Brass
- Diaphragm Material: High-Chloramine-Resistant PERMEX Diaphragm
- Operation: Manual
- MPN: SLOAN 9611-1.6-RB-AFD-MBFW
- Certifications: Buy American Act, IAPMO, ASSE-1037
- Fixture Served: Water Closet
- Body Style: Concealed
- Spud Connection: Rear Spud
- Rough-In (in): 24"
- Volume per Flush (gal): 1.6
- Dual Flush: No
- Finish: Unfinished (Rough Brass)
- Handle Style: Metal Button Fixture Wall Actuator
- Min Operating Pressure (PSI): 15
- Max Operating Pressure (PSI): 80
Dimensions
| Inlet Size | 1" | Outlet Size | 1-1/2" |
Details
| Series | SLOAN 9611 | Device Type | Flushometer |
| Body Material | Semi-Red Brass | Seat Material | High-Chloramine-Resistant PERMEX Diaphragm |
| Operation | Manual | Options | Metal Button Fixture Wall Actuator (MBFW), Anti-Flood Device Flush Connection (AFD) |
| Fixture Served | Water Closet | Body style | Concealed |
| Coating | Unfinished (Rough Brass) | Cycle volume gal | 1.6 gal |
| Dual flush | No | Handle style | Metal Button Fixture Wall Actuator |
| Operating pressure min psi | 15 PSI | Rough in in | 24" |
| Spud connection | Rear Spud | — | — |
Certifications & Standards
| Buy American Act | IAPMO |
| ASSE-1037 | — |
Compare with similar products
| Fixture Served | Water Closet
| Water Closet
|
| Series | SLOAN 9611
| SLOAN 112
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Flushometer
| Flushometer
|
| Inlet Size | 1"
| 1"
|
| Outlet Size | 1-1/2"
| 1-1/2"
|
| Body Material | Semi-Red Brass
| Semi-Red Brass
|
| Seat Material | High-Chloramine-Resistant PERMEX Diaphragm
| High-Chloramine-Resistant PERMEX Diaphragm
|
| Operation | Manual
| Manual
|
| Certifications | Buy American Act, IAPMO, ASSE-1037
| ADA, Buy American Act, IAPMO, ASSE-1037
|
| Options | Metal Button Fixture Wall Actuator (MBFW), Anti-Flood Device Flush Connection (AFD)
| No Control Stop (XD)
|
