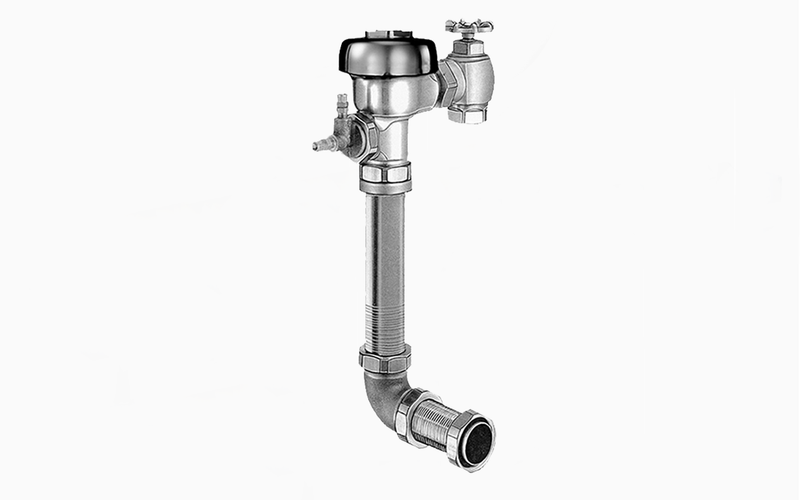

Sloan 9611 Concealed Manual Flushometer

The Sloan 9611 is a manual diaphragm-type flush valve for a water closet. It features a high-chloramine-resistant permex diaphragm seat.

Sloan 9611 concealed manual flushometer with PERMEX diaphragm, chloramine resistance, and ASSE 1037 compliance for commercial water closets.

Options on this configuration: Metal Button Fixture Wall Actuator (MBFW).

Features

• High chloramine resistant PERMEX®synthetic rubber diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet.

Is this exposed or concealed, and does it need a wall box?

Concealed -- the body sits behind the wall, with only the cover or trim visible.

What kind of handle does this have?

A Metal Button Fixture Wall Actuator handle, per Sloan's own spec for this model.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

Specifications

• Type: Flushometer
• Diaphragm Material: High-Chloramine-Resistant PERMEX Diaphragm
• Operation: Manual
• MPN: Sloan 9611
• Certifications: ASSE-1037
• Fixture Served: Water Closet
• Body Style: Concealed
• Handle Style: Metal Button Fixture Wall Actuator
