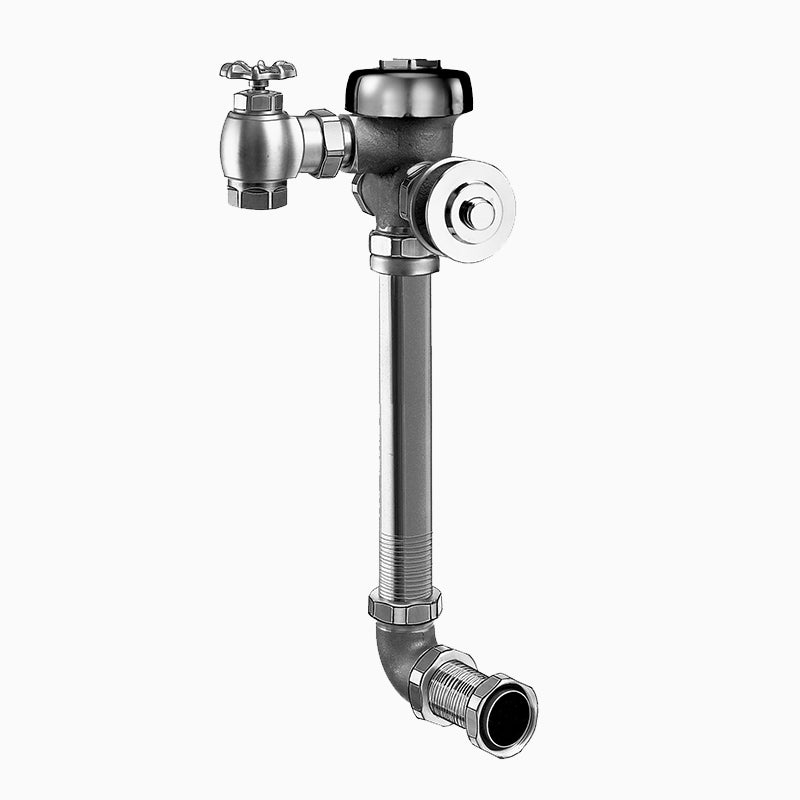

The SLOAN 611-1.6-RB-8-3/4-LDIM is a manual diaphragm-type flush valve for a water closet. It delivers 1.6 gallons per flush, with a top spud connection at a concealed body. It features a semi-red brass body and a high-chloramine-resistant permex diaphragm seat.
Sloan 611 concealed manual flushometer built for correctional and institutional use. PERMEX diaphragm, vandal-proof push-button, ASSE 1037 compliant.
Options on this configuration: 8-3/4" L Dimension (LDIM). Sloan model number: SLOAN 611-1.6-RB-8-3/4-LDIM.
Features
- 1.6 gpf, Rough Brass Finish, Fixture Connection Top Spud, Single Flush, 8.75" L Dimension
- Royal® and Regal® Prison Flushometers feature all the performance benefits of standard concealed, diaphragm model Flushometers with added durability to withstand rough environments
- Various flush volumes available to match with existing fixtures and meet water-efficiency goals
- Choose from Flushometers intended for use with stainless-steel water closet fixtures from Acorn®, Metcraft® and other manufacturers
- Diaphragm, handle packing, stop seat and vacuum breaker molded from PERMEX® rubber compound for chloramine resistance
- Vandal-proof, push-button operation designed with non-hold-open feature to keep fixture from surpassing intended water consumption
- Adjustable tailpiece accommodates various installation heights
- High chloramine resistant PERMEX® Synthetic Rubber Diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, 1.6 gallons per flush, a top spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
Specifications
- Type: Flushometer
- Inlet Size: 1"
- Outlet Size: 1-1/2"
- Body Material: Semi-Red Brass
- Diaphragm Material: High-Chloramine-Resistant PERMEX Diaphragm
- Operation: Manual
- Country of Origin: USA
- MPN: SLOAN 611-1.6-RB-8-3/4-LDIM
- Certifications: Buy American Act, IAPMO, ASSE-1037
- Fixture Served: Water Closet
- Body Style: Concealed
- Spud Connection: Top Spud
- Rough-In (in): 24"
- L Dimension (in): 8-3/4"
- Volume per Flush (gal): 1.6
- Dual Flush: No
- Finish: Unfinished (Rough Brass)
- Vandal Resistant: Yes
- Min Operating Pressure (PSI): 15
- Max Operating Pressure (PSI): 80
Product Information
Dimensions
| Inlet Size | 1" | Outlet Size | 1-1/2" |
Details
| Series | SLOAN 611 | Device Type | Flushometer |
| Body Material | Semi-Red Brass | Seat Material | High-Chloramine-Resistant PERMEX Diaphragm |
| Operation | Manual | Options | 8-3/4" L Dimension (LDIM) |
| Fixture Served | Water Closet | Body style | Concealed |
| Coating | Unfinished (Rough Brass) | Cycle volume gal | 1.6 gal |
| Dual flush | No | L dimension in | 8-3/4" |
| Operating pressure min psi | 15 PSI | Rough in in | 24" |
| Spud connection | Top Spud | Vandal resistant | Yes |
Certifications & Standards
| Buy American Act | IAPMO |
| ASSE-1037 | — |
