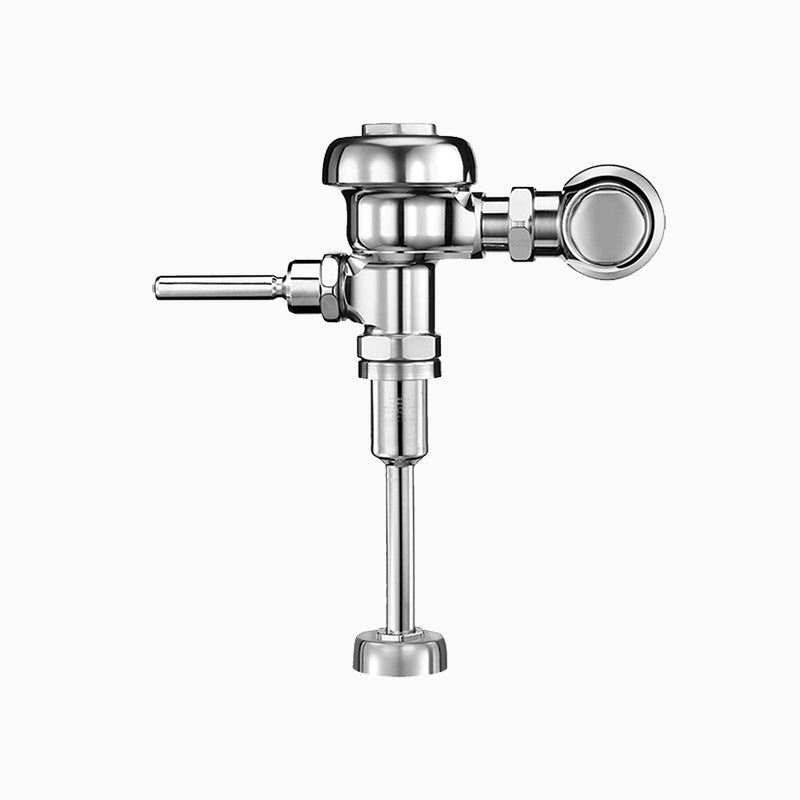

Sloan 186-0.125 Exposed Manual Flushometer, 0.125 gpf, with 15" Vacuum Breaker

The Sloan 186-0.125 is a manual diaphragm-type flush valve for a urinal. It delivers 0.125 gallons per flush, with an exposed body. It features a high-chloramine-resistant permex diaphragm seat.

Sloan 186 exposed manual urinal flushometer available in mutliple flush volumes, CID technology, ADA compliant handle, and PERMEX diaphragm.

Options on this configuration: W/15"; VB. Sloan model number: Sloan 186-0.125. Sloan's own price-list description: Sloan 186-0.125 W/15" VB.

Features

• Flush volumes start as low as 0.125 gpf/0.5 Lpf
• Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents urinal from exceeding intended flush volume
• Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
• Integrity of the product is maintained with the vandal-resistant stop cap
• Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
• Adjustable tailpiece to accommodate different height requirements
• High chloramine resistant PERMEX® Synthetic Rubber Diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a urinal, 0.125 gallons per flush.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

Specifications

• Type: Flushometer
• Diaphragm Material: High-Chloramine-Resistant PERMEX Diaphragm
• Operation: Manual
• MPN: Sloan 186-0.125
• Certifications: ASSE-1037
• Fixture Served: Urinal
• Body Style: Exposed
• Volume per Flush (gal): 0.125
• Vandal Resistant: Yes
