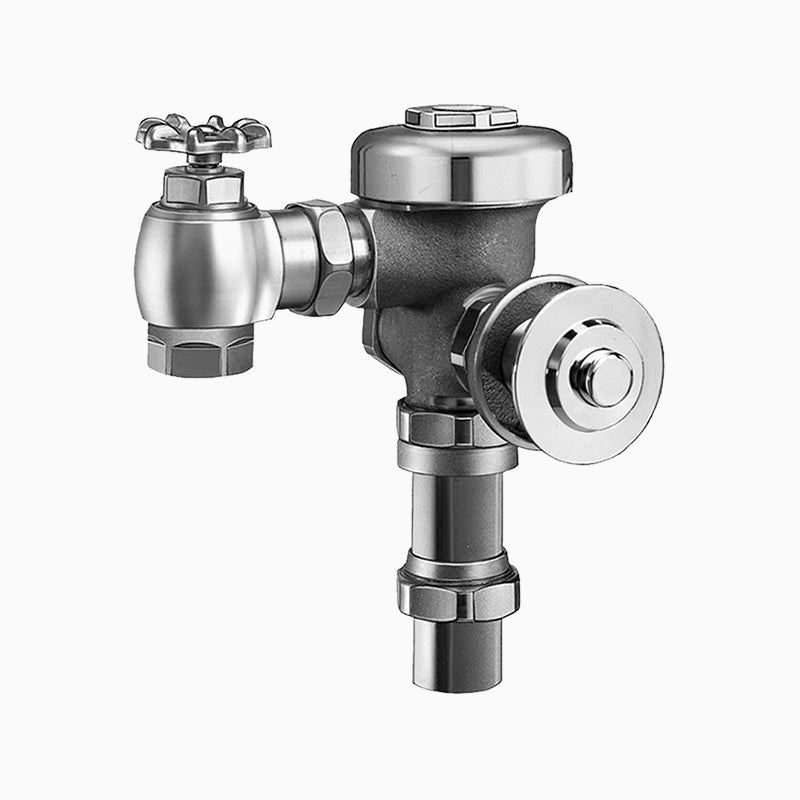

Sloan 150-1.28 Concealed Manual Flushometer, 1.28 gpf

The Sloan 150-1.28 is a manual diaphragm-type flush valve for a water closet. It delivers 1.28 gallons per flush, with a concealed body. It features a high-chloramine-resistant permex diaphragm seat.

Sloan 150 concealed manual flushometer with PERMEX diaphragm, Semi-Red Brass construction, and ASSE 1037 compliance for commercial water closets.

Options on this configuration: 10-3/4" L Dimension (LDIM). Sloan model number: Sloan 150-1.28.

Features

• High chloramine resistant PERMEX®synthetic rubber diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet, 1.28 gallons per flush.

Is this exposed or concealed, and does it need a wall box?

Concealed -- the body sits behind the wall, with only the cover or trim visible.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

Specifications

• Type: Flushometer
• Diaphragm Material: High-Chloramine-Resistant PERMEX Diaphragm
• Operation: Manual
• MPN: Sloan 150-1.28
• Certifications: ASSE-1037
• Fixture Served: Water Closet
• Body Style: Concealed
• L Dimension (in): 10-3/4"
• Volume per Flush (gal): 1.28
