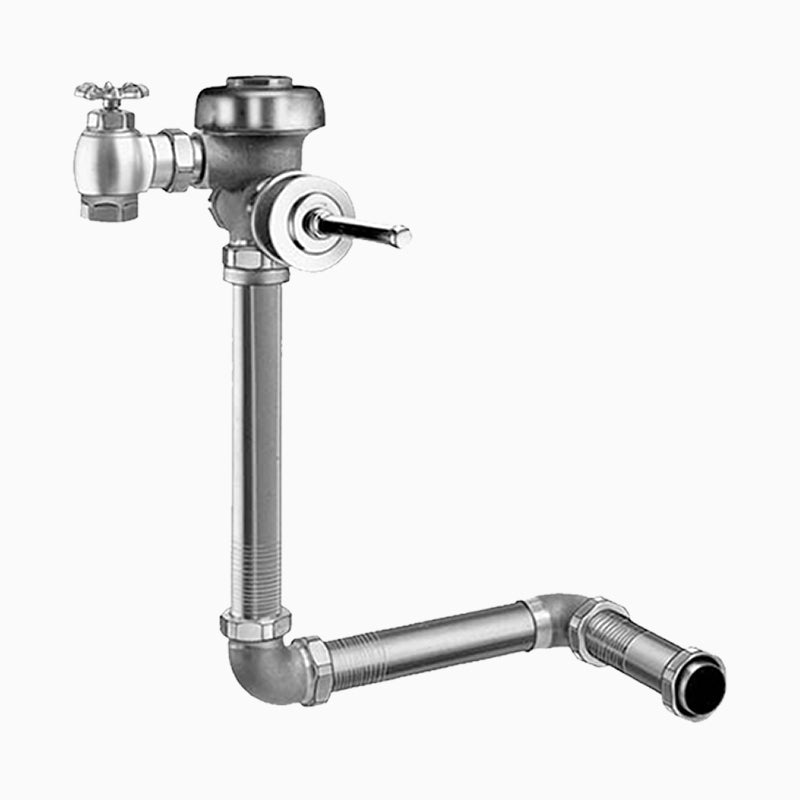

Sloan 143-1.6 Concealed Manual Flushometer, 1.6 gpf, 10-3/4" LDIM, Saniguard Handle

The Sloan 143-1.6 is a manual diaphragm-type flush valve for a water closet. It delivers 1.6 gallons per flush, with a concealed body. It features a high-chloramine-resistant permex diaphragm seat.

Sloan 143 concealed manual flushometer with CID technology, PERMEX diaphragm, and ADA-compliant handle for commercial water closets.

Options on this configuration: 10-3/4" L Dimension (LDIM); Saniguard Handle (SG). Sloan model number: Sloan 143-1.6.

Features

• Flush volumes start as low as 1.28 gpf/4.8 Lpf
• Water conservation is aided by the ADA-compliant, non-hold-open handle
• Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
• Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
• Adjustable tailpiece to accommodate different height requirements
• High chloramine resistant PERMEX® Synthetic Rubber Diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet, 1.6 gallons per flush.

Is this exposed or concealed, and does it need a wall box?

Concealed -- the body sits behind the wall, with only the cover or trim visible.

What kind of handle does this have?

A Saniguard handle, per Sloan's own spec for this model.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

Specifications

• Type: Flushometer
• Diaphragm Material: High-Chloramine-Resistant PERMEX Diaphragm
• Operation: Manual
• MPN: Sloan 143-1.6
• Certifications: ASSE-1037
• Fixture Served: Water Closet
• Body Style: Concealed
• L Dimension (in): 10-3/4"
• Volume per Flush (gal): 1.6
• Handle Style: Saniguard
