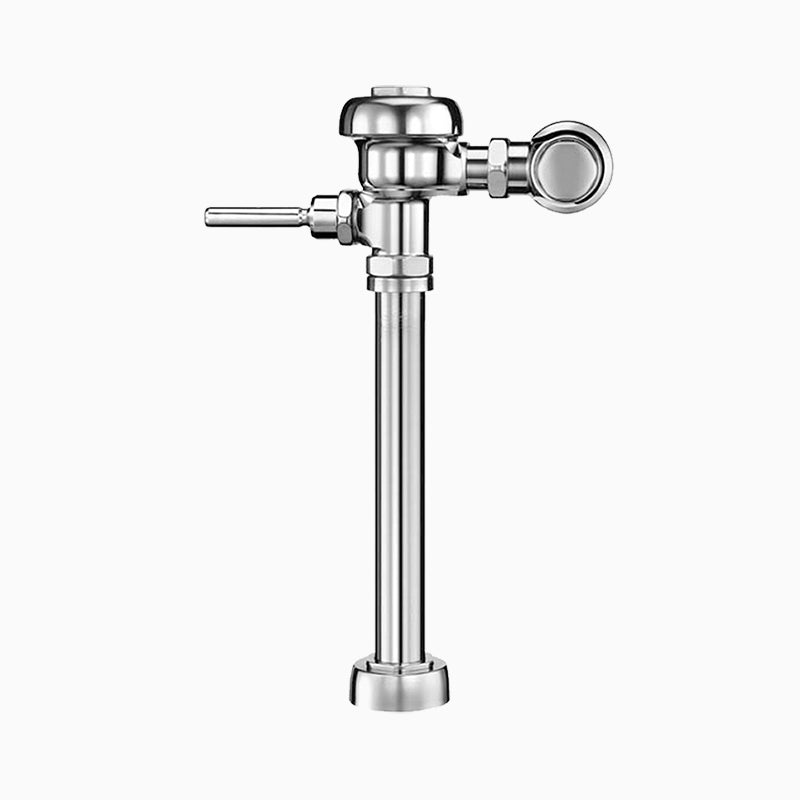

The SLOAN 117-6.5-CP-YJ is a manual diaphragm-type flush valve for a service sink. It delivers 6.5 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body and a high-chloramine-resistant permex diaphragm seat.
Sloan 117 exposed manual service sink flushometer rated at 6.5 gpf, ADA compliant with vandal resistant stop cap and PERMEX diaphragm.
Options on this configuration: Split Ring Pipe Support (YJ). Sloan model number: SLOAN 117-6.5-CP-YJ.
Features
- 6.5 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Split Ring Pipe Support
- Standard flush volume is 6.5 gpf/24.6 Lpf
- ADA-compliant, non-hold-open handle prevents fixture from exceeding intended flush volume
- Vandal-resistant stop cap protects against prying hands
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- High chloramine resistant PERMEX® Synthetic Rubber Diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a service sink, 6.5 gallons per flush, a top spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA and ASSE-1037.
Specifications
-
Type: Flushometer
-
Inlet Size: 1"
-
Outlet Size: 1-1/2"
-
Body Material: Semi-Red Brass
-
Diaphragm Material: High-Chloramine-Resistant PERMEX Diaphragm
-
Operation: Manual
-
Country of Origin: USA
-
MPN: SLOAN 117-6.5-CP-YJ
-
Certifications: ADA, Buy American Act, ASSE-1037
-
Fixture Served: Service Sink
-
Body Style: Exposed
-
Spud Connection: Top Spud
-
Rough-In (in): 24"
-
Volume per Flush (gal): 6.5
-
Dual Flush: No
-
Finish: Polished Chrome
-
Vandal Resistant: Yes
-
Min Operating Pressure (PSI): 15
-
Max Operating Pressure (PSI): 80
