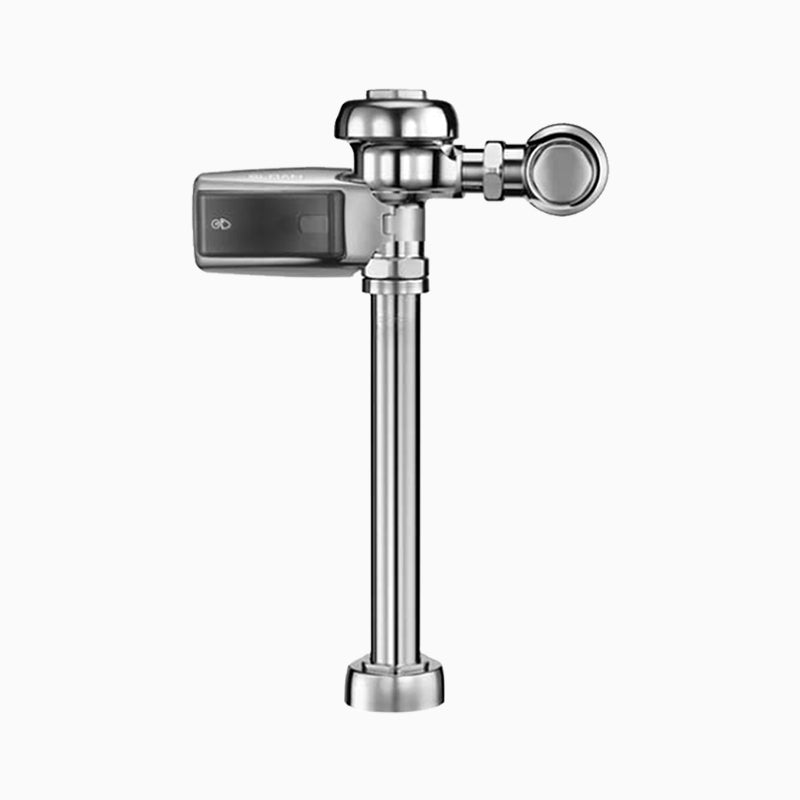

The SLOAN 116 SMOOTH-1.6-CP is a sensor-operated diaphragm-type flush valve for a water closet. It delivers 1.6 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body and a high-chloramine-resistant permex diaphragm seat.
Conserve water with SLOAN 116 SMOOTH flushometer. Low 1.6 gpf flush, CID technology for accuracy, and vandal-resistant design ensure efficiency in commercial settings.
Options on this configuration: Dual-Filtered Fixed Bypass Diaphragm (DFB). Sloan model number: SLOAN 116 SMOOTH-1.6-CP.
Features
- 1.6 gpf, Dual-Filtered Fixed Bypass Diaphragm, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Battery
- Flush volumes start as low as 1.6 gpf/6.0 Lpf
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Integrity of the product is maintained with the vandal-resistant stop cap
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece to accommodate different height requirements
- High chloramine resistant PERMEX® Synthetic Rubber Diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, 1.6 gallons per flush, a top spud connection.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- How is it powered, and what happens in a power outage?
- Battery-powered -- no wiring required.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA and ASSE-1037.
Specifications
-
Type: Flushometer
-
Inlet Size: 1"
-
Outlet Size: 1-1/2"
-
Body Material: Semi-Red Brass
-
Diaphragm Material: High-Chloramine-Resistant PERMEX Diaphragm
-
Operation: Sensor
-
MPN: SLOAN 116 SMOOTH-1.6-CP
-
Certifications: ADA, Buy American Act, IAPMO, ASSE-1037
-
Fixture Served: Water Closet
-
Body Style: Exposed
-
Spud Connection: Top Spud
-
Rough-In (in): 27"
-
Volume per Flush (gal): 1.6
-
Dual Flush: No
-
Finish: Polished Chrome
-
Vandal Resistant: Yes
-
Min Operating Pressure (PSI): 15
-
Max Operating Pressure (PSI): 80
-
Power Source: DC (Battery)
-
Sensing Range (in): 26"-32"
