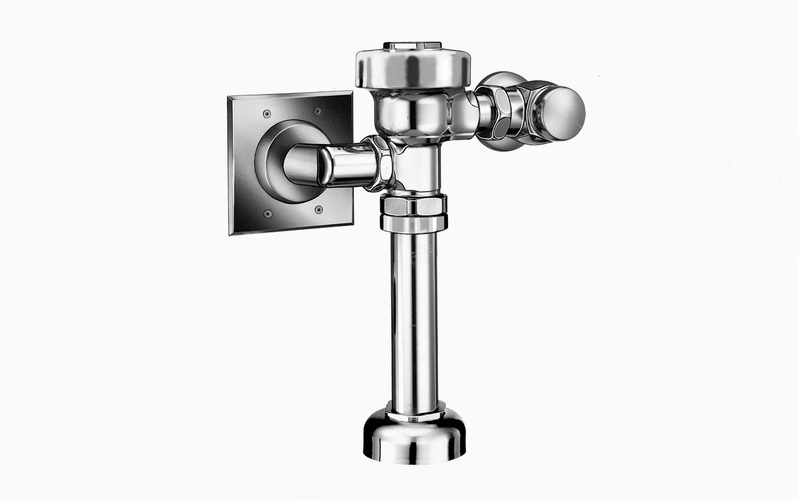

Sloan 910-1.6 Exposed Manual Flushometer, 1.6 gpf, Top Spud, Polished Chrome, Metal Button Panel Mount Handle

The SLOAN 910-1.6-CP-MBPM is a manual diaphragm-type flush valve for a water closet. It delivers 1.6 gallons per flush, with a top spud connection at an exposed body. It features a semi-red brass body and a high-chloramine-resistant permex diaphragm seat.

Sloan 910 exposed manual flushometer with PERMEX diaphragm, Semi-Red Brass body, and ASSE 1037 compliance for commercial water closet applications.

Options on this configuration: Metal Button Panel Mount Handle (MBPM). Sloan model number: SLOAN 910-1.6-CP-MBPM.

Features

• 1.6 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Metal Button Panel Mount Push Button
• High chloramine resistant PERMEX®synthetic rubber diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet, 1.6 gallons per flush, a top spud connection.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

What kind of handle does this have?

A Metal Button Panel Mount handle, per Sloan's own spec for this model.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ADA and ASSE-1037.

Specifications

• Type: Flushometer
• Inlet Size: 1"
• Outlet Size: 1-1/2"
• Body Material: Semi-Red Brass
• Diaphragm Material: High-Chloramine-Resistant PERMEX Diaphragm
• Operation: Manual
• MPN: SLOAN 910-1.6-CP-MBPM
• Certifications: ADA, Buy American Act, IAPMO, ASSE-1037
• Fixture Served: Water Closet
• Body Style: Exposed
• Spud Connection: Top Spud
• Rough-In (in): 11.5"
• Volume per Flush (gal): 1.6
• Dual Flush: No
• Finish: Polished Chrome
• Handle Style: Metal Button Panel Mount
• Min Operating Pressure (PSI): 15
• Max Operating Pressure (PSI): 80
