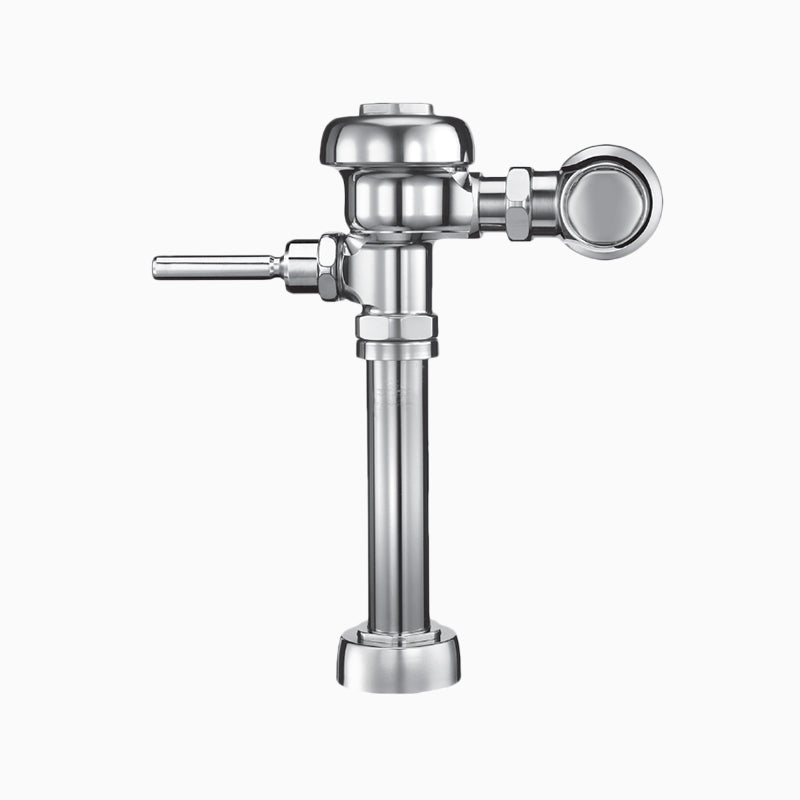

The Sloan 110-2.4 is a manual diaphragm-type flush valve for a water closet. It delivers 2.4 gallons per flush, with an exposed body. It features a high-chloramine-resistant permex diaphragm seat.
Sloan 110 exposed manual flushometer with flush volumes 2.4 or 3.5 gpf, ADA compliant handle, and PERMEX diaphragm for commercial water closets.
Options on this configuration: Less Control Stop (order separately) (L/STOP); Less Vacuum Breaker (order separately) (XYV); Less Flush Connection (L/FC). Sloan model number: Sloan 110-2.4.
Features
- Flush volumes start as low as 3.5 gpf/13.2 Lpf
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Integrity of the product is maintained with the vandal-resistant stop cap
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece to accommodate different height requirements
- High chloramine resistant PERMEX® Synthetic Rubber Diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, 2.4 gallons per flush.
- Is this exposed or concealed, and does it need a wall box?
- Exposed -- the working parts are visible on the wall surface.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ASSE-1037.
- What control stop ships with this valve?
- None (Order Separately), per Sloan's own spec for this model.
Specifications
-
Type: Flushometer
-
Diaphragm Material: High-Chloramine-Resistant PERMEX Diaphragm
-
Operation: Manual
-
Control Stop: None (Order Separately)
-
MPN: Sloan 110-2.4
-
Certifications: ASSE-1037
-
Fixture Served: Water Closet
-
Body Style: Exposed
-
Volume per Flush (gal): 2.4
-
Vandal Resistant: Yes
-
Backflow Device: None (Order Separately)
