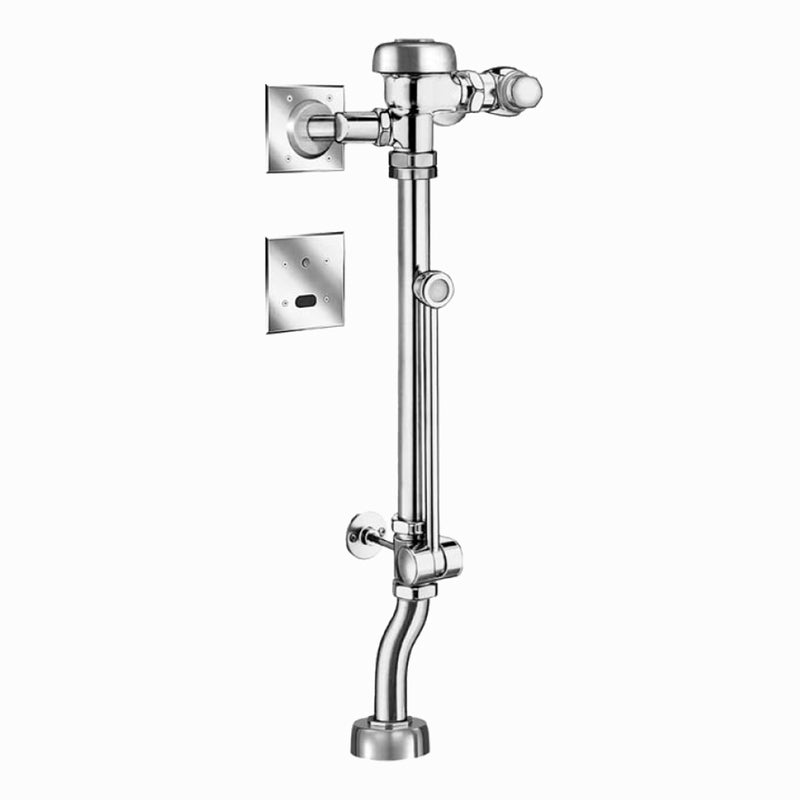

Sloan BPW 1150 ESS Exposed Hardwired Sensor Water Closet Flushometer (1.6 GPF), Dual-Filtered Fixed Bypass Diaphragm

The Sloan BPW 1150-1.6 is a sensor-operated diaphragm-type flush valve for a water closet. It delivers 1.6 gallons per flush, with an exposed body. It features a high-chloramine-resistant permex diaphragm seat.

Discover the Sloan BPW 1150 ESS flushometer for commercial use. High-performance, chloramine-resistant, and ASSE 1037 compliant. Ideal for engineers and maintenance staff.

Options on this configuration: Dual-Filtered Fixed Bypass Diaphragm (DFB). Sloan model number: Sloan BPW 1150-1.6.

Features

• High chloramine resistant PERMEXsynthetic rubber diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Common Questions

What fixture and flush volume is this valve for?

Per Sloan's own spec, it serves a water closet, 1.6 gallons per flush.

Is this exposed or concealed, and does it need a wall box?

Exposed -- the working parts are visible on the wall surface.

How is it powered, and what happens in a power outage?

Hardwired -- no battery to replace, but an electrician must run power to it.

Is this ADA, WaterSense, or ASSE 1037 listed?

Yes -- Sloan lists it as ASSE-1037.

Specifications

• Type: Flushometer
• Diaphragm Material: High-Chloramine-Resistant PERMEX Diaphragm
• Operation: Sensor
• MPN: Sloan BPW 1150-1.6
• Certifications: ASSE-1037
• Fixture Served: Water Closet
• Body Style: Exposed
• Volume per Flush (gal): 1.6
• Power Source: Hardwired AC
