Specifications
Description

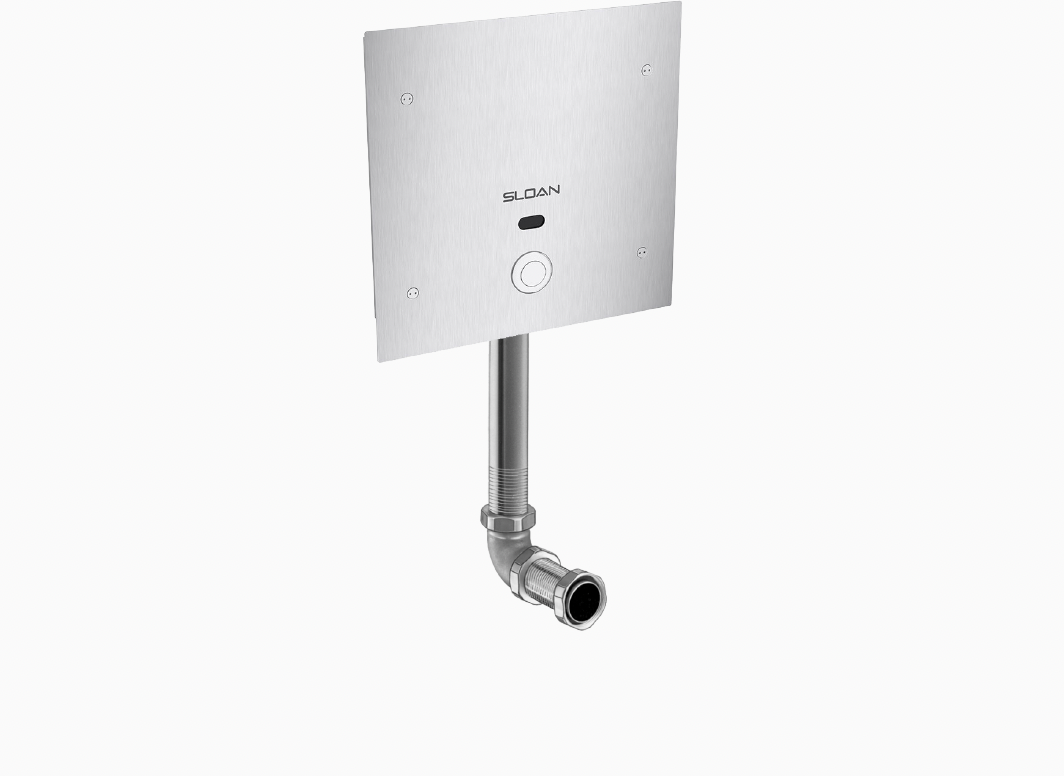

The SLOAN 611-1.28 ESS TMO SWB-1.28-CP-TMO-HW is a sensor-operated diaphragm-type flush valve for a water closet. It delivers 1.28 gallons per flush, with a concealed body. It features a semi-red brass body.
Efficient 1.28 GPF concealed sensor flushometer for commercial water closets. ADA compliant, WaterSense certified. Polished chrome finish.
Options on this configuration: Small Wall Box (SWB); Hardwired (HW); True Mechanical Override (TMO). Sloan model number: SLOAN 611-1.28 ESS TMO SWB-1.28-CP-TMO-HW.
Features
- 1.28 gpf, Polished Chrome Finish, Single Flush, True Mechanical Override, Hardwired
Common Questions
- What fixture and flush volume is this valve for?
- Per Sloan's own spec, it serves a water closet, 1.28 gallons per flush.
- Is this exposed or concealed, and does it need a wall box?
- Concealed -- the body sits behind the wall, with only the cover or trim visible.
- How is it powered, and what happens in a power outage?
- Hardwired -- no battery to replace, but an electrician must run power to it. It has a true mechanical override, so it still flushes by hand if power is lost.
- Is this ADA, WaterSense, or ASSE 1037 listed?
- Yes -- Sloan lists it as ADA and WaterSense.
Specifications
- Type: Flushometer
- Body Material: Semi-Red Brass
- Operation: Sensor
- MPN: SLOAN 611-1.28 ESS TMO SWB-1.28-CP-TMO-HW
- Certifications: ADA, WaterSense, UL
- Fixture Served: Water Closet
- Body Style: Concealed
- Volume per Flush (gal): 1.28
- Dual Flush: No
- Finish: Polished Chrome
- Power Source: Hardwired AC
- Override Type: True Mechanical Override
Product Information
| SKU | UPC | Spec Sheet |
|---|---|---|
| 37781012 | 671254565630 | Download |
Details
| Series | SLOAN 611-1.28 ESS TMO SWB | Device Type | Flushometer |
| Body Material | Semi-Red Brass | Operation | Sensor |
| Options | Small Wall Box (SWB), Hardwired (HW), True Mechanical Override (TMO) | Fixture Served | Water Closet |
| Body style | Concealed | Coating | Polished Chrome |
| Cycle volume gal | 1.28 gal | Dual flush | No |
| Override type | True Mechanical Override | Power source | Hardwired AC |
Certifications & Standards
| ADA | WaterSense |
| UL | — |
Compare with similar products
| Fixture Served | Water Closet
| Urinal
|
| Series | SLOAN 611-1.28 ESS TMO SWB
| SLOAN 8186
|
| Spec Sheet | ||
| Device Type | Flushometer
| Flushometer
|
| Body Material | Semi-Red Brass
| Semi-Red Brass
|
| Operation | Sensor
| Sensor
|
| Certifications | ADA, WaterSense, UL
| ADA, Buy American Act, BABA, IAPMO, WaterSense, ASSE-1037
|
